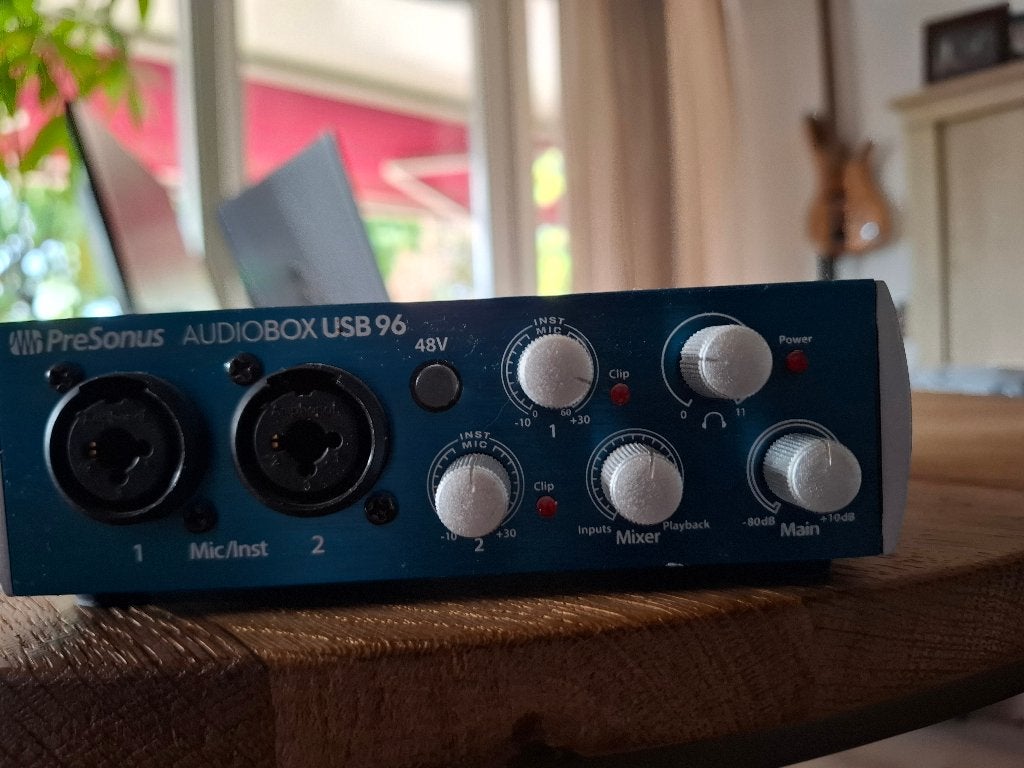

Presonus Audiobox usb 96

Ik verkoop de interface Presonus Audiobox usb 96.
Deze gebruik ik niet meer.
Is in goede staat.

Productinformatie Presonus Audiobox USB 96
De Presonus Audiobox USB 96 betreft een interface/externe geluidskaart.Dankzij de combo inputs blijft de interface lekker compact, zonder in te leveren op connectiviteit. Daarnaast beschikt de Presonus Audiobox USB 96 over een hoofdtelefoon uitgang (met direct monitor functionaliteit) en MIDI in- en outputs.
Microphone Preamp

Type: XLR Female Balanced
Frequency Response: (±3.0 dB) 20 Hz to 20 kHz
Input Impedance: (Balanced) 1200Ω
THD+N: (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
S/N Ratio: (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
Common Mode Rejection Ratio: (1 kHz, 55 dB Gain) > 45 dB
Gain Control Range: (± 1 dB) 0 dB to 35 dB
Max Input Level: (Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
Phantom Power: (±2 VDC) +48 VDC

Instrument Input

Type: ¼" TS Female Unbalanced
Input: Impedance 0.5 MΩ

Line Outputs

Type: ¼" Balanced
Output Impedance: 51Ω

Headphone Output

Type: ¼" TRS Active Stereo
Maximum Output: 60 mW/Ch @ 60Ω Load
Frequency Response: (±1.0 dB) 20 Hz - 30 kHz

MIDI I/O

Type Dual 5-pin Female DIN

Digital Audio

ADC Dynamic Range: (A-wtd, 48 kHz Sample Rate) 105 dB
DAC Dynamic Range: (A-wtd, 48 kHz Sample Rate) 105 dB
Bit Depth: 24
Reference Level for 0 dBFS: +4 dBu
Internal Sample Frequency Selections: (kHz) 44.1, 48, 88.2, 96
Power: USB 2.0 bus-powered

Physical

Dimensions: 1/3U (steel chassis)
Height: 5.5” (139.7 mm)
Depth: 1.75" (44.45 mm)
Width: 5.5” (139.7 mm)
Weight: 5 lbs (2.27 kg)
