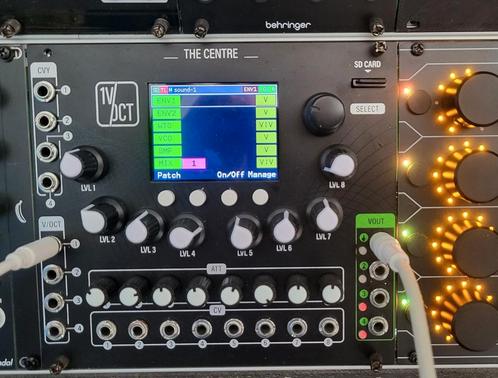

1V/OCT the CENTRE wavetable oscillator eurorack

1V/Oct de Center Wavetable-oscillator

Inclusief zwart en zilver paneel.


Wavetable Oscillator with Unison/Detune/Modulations - and you can run multiple instances at once.

Supports Serum and Dune 2 format Wavetables

Polyphony for Wavetable (multiple voice or polyphony)

LFOs, VCOs - standard modular digital versions

Shapes - shapes for LFO or envelope.

Filters (Bi-Quad and Ladder)

Drum Racks - MIDI powered drum sets playing sampled drums

Clocks, MIDI clocks, gate dividers

Some physical modeling

Ring modulations

Wave folding

and many many more present or to be developed.

Specs:

Internal 48kHz @ 32bit processing
Supports Serum and Dune 2 format Wavetables
Supports 8, 16 and 32bit (including floating point type) WAV files
Width 24HP
Power consumption: +12V 200mA, -12V 30mA
Support for FAT filesystem SDCARD

Inputs and outputs:

DAC: 4 channels @ 16bit 48kHz - 4 outputs
4 V/OCT inputs covering 8 octaves
4 Gate / Clock inputs (configurable threshold)
8 CV inputs (-5V to 5V)
8 Level knobs and 8 Attenuator knobs - any function can be assigned, Level and Attenuator are only names
Unlimited internal CV patches between internal modules
