Moog Bob Moog Tribute Edition Minimoog Model D Inclusief Dedicated Semirigid SR Series Travel Case, Limited Special Edition with Oak Housing

A Limited-Edition Piece of Synth History

In 1970, the Minimoog Model D redefined modern music-making as the first portable, performance-ready analog keyboard synthesizer—bringing the Moog sound to artists worldwide. This tribute edition honors that legacy and the visionary spirit of Bob Moog.

A studio statement piece. A powerful, hands-on inspiration machine. A trusted songwriting companion that adds depth to studio recordings and emotion to live performances. This is the legacy of the Minimoog Model D.

Loved for its warm, analog tone and intuitive, straightforward design, this timeless synthesizer’s influence transcends genres and generations. Its distinctive basses, soaring leads, and classic filter character established the Model D as the archetype of what artists and listeners still imagine when they think of the synthesizer.

The Bob Moog Tribute Edition Minimoog Model D celebrates the essence of this instrument and Bob Moog’s innovative technology, preserving its iconic sound and soul.

We designed this limited-edition production run with intentional details that commemorate Bob Moog's earliest synthesizer models. The instrument features a custom badge that uses a metal photo-anodization process, which harkens back to the modular panel graphics found on the System 55, System 35, and Model 10 synthesizers, as well as select early R.A. Moog Co. Minimoogs.

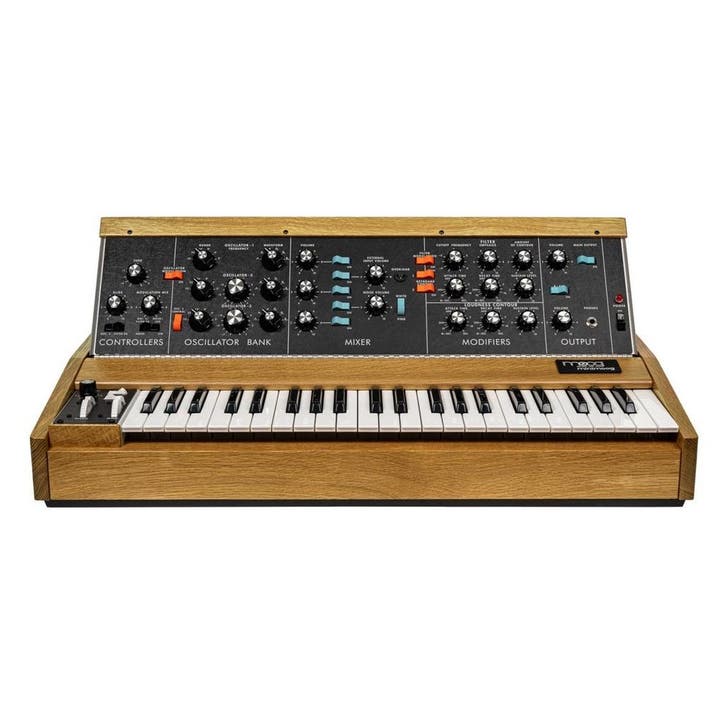

The instrument features a customquartersawn oak woodenclosure, a unique back-panel decal, and an included SR Series travel case, along with 100% analog circuitry and all the modern functional enhancements from the instrument’s latest reissue.

Each Bob Moog Tribute Edition Minimoog Model D synthesizer is assembled by hand in our North Carolina production facility, and only 500 in total will be built by our small team.

100% Analog Signal Path

Featuring a discrete analog mixer, analog oscillators, dual envelope generators, and analog VCA, everyelementof the Model D is engineered fordeep, dynamic sound.Its all-analog signal pathmakes this synthesizer astandout intoday'sstudios and stage setups.

The Iconic Ladder Filter

The classic 24 dB/octave Moog ladder filter provides the unmistakable resonance and smooth cutoff sweep thatdefined the sound of the synthesizer. From round, warm bass tones to sharp peaks, the filterremainsone of the mostcelebrateddesigns in analog synthesis.

Feature Enhancements

While faithful to the original1970sdesign, theBob Moog Tribute Edition MinimoogModel D includes modern enhancements like a dedicated LFO mode for Oscillator 3 and expanded modulation routing, a premium Fatar keybed with velocity and after-pressure, MIDI integration, and a spring-loaded pitch wheel. These additions allow for greater expression and deeper sound design while preserving the traditional front-panel workflow.

Modern Connectivity

Thisedition of theModel D integrates seamlessly into contemporary setups with MIDI In/Out/Thru, CV and Gate inputs/outputs, and an external audio input for processing other instruments through the legendary filter and amplifier section.

Custom Protective Case

Every Bob Moog Tribute Edition Minimoog Model D includes a semi-rigid case designed specifically for this instrument, providing protection for transport whileon the roador simply traveling from home to the studio.

Support forthe Bob Moog Foundation

To honor Dr. Bob Moog’s legacy and impact on modern music technology, $500 from each unit sold will be donated directly to the Bob Moog Foundation, supporting theMoogseum, Dr. Bob’s Sound School, and the preservation of the Bob Moog Foundation Archives.

Tech Specs: Bob Moog Tribute Edition Minimoog Model D

DIMENSIONS (WITH PANEL FULLY LOWERED)

Width: 28.625" / 727 mm

Depth: 17.125" / 435 mm

Height: 5.75" / 146 mm

Net Weight: 32 lbs. / 14.5 kg.

TEMPERATURE

Storage Temperature: 5F to 140F (2C to 60C)

Nominal Operating Temperature: 50F to 95F (10C

to 35C)

Operational Temperature: 50F to 122F (10C to 50C)

SOUND SOURCES

Oscillators x 3

Noise Generator

External Input

OSCILLATORS

Frequency Range: 0.1 to 20kHz (In Six Overlapping Ranges)

Oscillator Stability (short term) > 0.25 %

Waveforms:

Triangle

Triangle-Sawtooth (Oscillator-1, Oscillator-2)

Reverse Sawtooth (Oscillator-3)

Sawtooth

Rectangle

Wide Pulse

Narrow Pulse

NOISE GENERATOR

White and Pink

LFO

Rate: 0.05Hz to 200Hz

Waveform: Triangle (knob down); Square (knob up)

EXTERNAL INPUT

Input Range: +10 millivolts to +2 volts

Input Impedance: 1MEGOhms

FILTER

Filter Type: Voltage-Controlled Low Pass

(Moog Ladder Filter)

Cutoff Frequency Range:

10Hz to 20kHz

Filter Slope: 24dB per Octave

Filter Resonance: At Cutoff Frequency

CONTOUR GENERATORS

Attack Time: 1 millisecond to 10 seconds

Decay Time: 4 milliseconds to > 35 seconds

Sustain Level: 0 to 100% of Contour peak

Filter Contour Width: 0 to 4 Octaves

VOLTAGE-CONTROLLED AMPLIFIERS (VCA)

Loudness Contour Dynamic Range: 80dB

AUDIO INPUT LEVELS

1/4" External Signal Input Voltage: +10 millivolts (min); +10 volt (max)

Nominal Input Impedance: 100KOhms

AUDIO OUTPUT LEVELS

High Level Output Typical Voltage: 0.5 volts

Maximum Voltage: 4.2 volts (peak-to-peak)

Nominal Output Impedance: 3KOhms

Low Level Output (30dB below High level)

Typical Voltage: 15 millivolts

Nominal Output Impedance: 1KOhms

Headphone Output (stereo)

Maximum Voltage: 0.3 volts

Output Impedance: 8Ohms

KEYBOARD

Key Action: Synthesizer (Spring)

Number of Keys: 44

Key Range: FO to C4

Priority (Low, High, Last): User Selectable

Hardwired Connections: Oscillator-1 (Pitch)

Oscillator-2 (Pitch)

Filter Contour (Trigger) Loudness Contour (Trigger)

Switchable Connections: Oscillator-3 (Pitch)

Filter (Keyboard Tracking 1/3) Filter (Keyboard

Tracking 2/3)

Typical Voltage: 0.5 volts

Maximum Voltage: 4.0 volts (peak-to-peak)

Nominal Output Impedance: 3KOhms

Glide Rate (octave): 1 millisecond to 10 seconds

Pitch Bend Range: (+/-) 7 semitones
