Sequential Prophet X

Sequential Prophet X

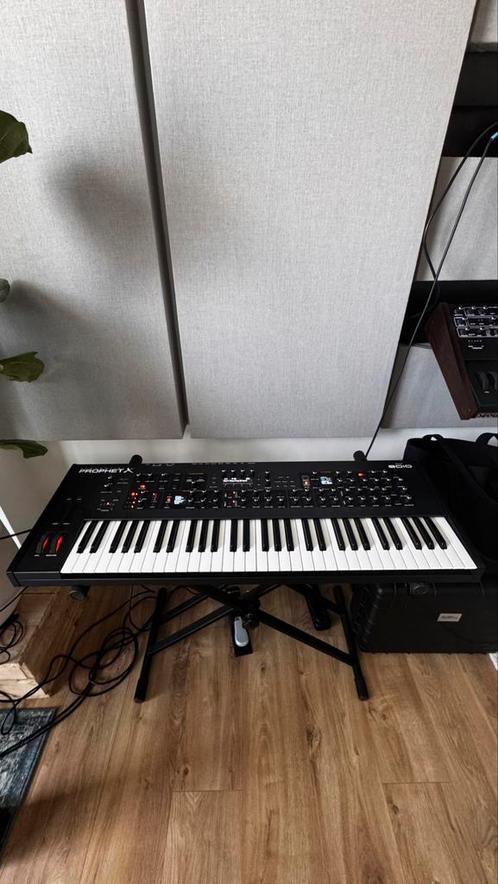

Inclusief originele doos en alle originele accessoires. Lichte gebruikssporen (zie foto), werkt volledig naar behoren.

De Prophet X is een krachtige fusie van samples-plus-synthese en is Dave Smith’s meest baanbrekende evolutie van de Prophet tot nu toe. In essentie is het een bi-timbrale, 8-stemmige stereo (16-stemmige mono) synthesizer met een nieuw ontwikkelde geluidsengine die twee simultane 16-bit, 48kHz sample-gebaseerde instrumenten en twee hoge-resolutie digitale oscillatoren aanstuurt – allemaal verwerkt via analoge filters. Met 150 GB interne samples van de veelgeprezen geluidsontwikkelaars 8Dio en alle krachtige synthesetools die je van Dave mag verwachten, heeft de Prophet X een unieke muzikale sound.

Sequential Prophet X Specifications

SAMPLE PLAYBACK
2 multi-sampled stereo instruments per voice with editable sample start, sample end, loop size, and loop center, loop on/off, sample reverse, sample stretch, bit-rate reduction, and sample rate reduction
150 GB of factory-installed 16-bit, 48 kHz sampled instruments created by 8Dio. An additional 50 GB of samples can be added by purchasing additional sound libraries.

OSCILLATORS
2 digital oscillators per voice with selectable sine, sawtooth, pulse, and supersaw waves. You can vary the shape of any of the waveshapes.
Glide (portamento): separate rates per oscillator; (samples can glide in Sample Stretch mode)
Hard sync

FILTERS
2 x analog 4-pole resonant low-pass filter per voice
Digital high-pass filter in Effects section

ENVELOPES
4 loopable, five-stage (ADSR plus delay) envelope generators: Filter, VCA, and two assignable

SEQUENCER
Polyphonic step sequencer with up to 64 steps (6 notes per step), and ties and rests.

AMPLIFIER ENVELOPE
Four-stage (ADSR) envelope generator
Velocity modulation of envelope amount

LOW FREQUENCY OSCILLATORS
4 LFO’s with key sync, phase offset, and slewing per LFO
Five wave shapes: triangle, sawtooth, reverse sawtooth, square, and random (sample and hold)

MODULATION
16-slot modulation matrix
28 sources
88 destinations
11 additional dedicated sources: mod wheel, pressure, velocity, breath controller, footswitch, LFO 1, LFO 2, LFO 3, LFO 4, Env 3, Env 4

ARPEGGIATOR
Fully-featured arpeggiator with up, down, up+down, random, assign modes
Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
One, two, or three octave range
Re-latching arpeggiation
Note repeat

DIGITAL EFFECTS
2 digital effects on each layer
Stereo delay, BBD delay, chorus, flanger, phaser, vintage rotating speaker, distortion, high-pass filter, spring reverb, room reverb, hall reverb, super plate reverb

CLOCK
Master clock with tap tempo
BPM control and display
MIDI clock sync

PERFORMANCE CONTROLS
Full-sized, semi-weighted, 5-octave keyboard with velocity and channel (mono) aftertouch
Backlit pitch and mod wheels
Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)
Transpose controls for an 8-octave range
Hold switch latches held notes on
Polyphonic glide (portamento)
Unison (monophonic) mode with configurable voice count

PATCH MEMORY
512 Factory Programs (4 banks of 128) and 512 fully editable User Programs with 2 layers (2 separate sounds) in each Program

IN/OUT
MIDI In, Out, Thru
USB MIDI
Sample import jack for USB Stick
Main stereo audio output: 2 x 1/4″ phone (TS, unbalanced)
Output B stereo audio output: 2 x 1/4″ phone (TS, unbalanced)
Pedal/CV: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages.
Volume: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages.
Sustain pedal input: accepts normally on or normally off momentary footswitch.
Sequencer: accepts normally on or normally off momentary footswitch to trigger sequencer playback.
Headphone output: 1/4″ stereo phone jack.

POWER
IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz
Power consumption: 25 watts maximum

PHYSICAL SPECS
Dimensions: 38.44″ L x 13.53″ W x 4.13″ H (97.6 cm L x 34.3 cm W x 10.9 cm H)
Weight: 24 lbs
