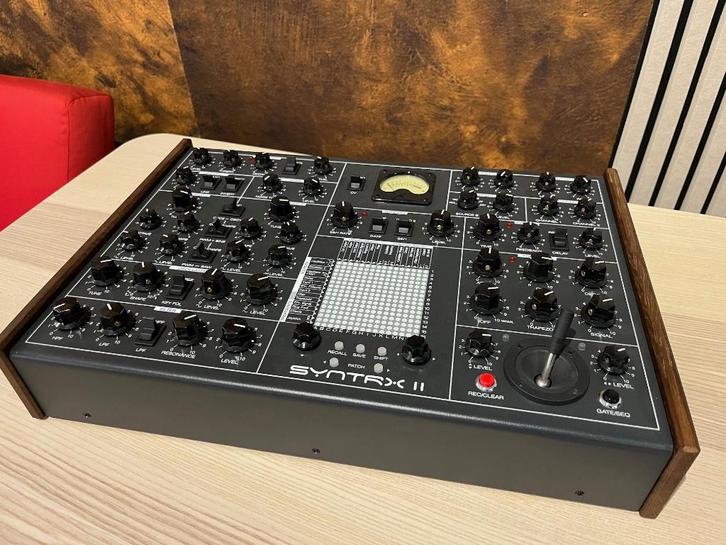

Analogue Desktop Synthesizer

• 2 VCOs with octave selector and fine tuning control
• 2 Mixable waveforms per oscillator (incl. waveshaping)
• Synchronisation of VCO2 to VCO1 switchable
• Modulation oscillator with 2 mixable waveforms and waveshaping
• Noise generator with filter
• Series-connected high-pass and low-pass filters with resonance
• Synchronisable "sample & hold" section
• Ring modulator
• Instrument input with envelope follower
• Second signal input switchable between line and microphone level
• Function generator with AD, ASR and loop mode
• 2 VCAs with panorama control
• On-board effect, switchable between reverb or delay
• Assignable joystick with attenuator for X- and Y-axis, record function and manual gate button
• Digitally controlled modulation matrix with 16 sources and 16 destinations
• Memory for 254 patches
• VU meter for displaying control voltage or audio level
• 2 CV inputs and gate-in (6.3 mm jack)
• 2 Audio inputs (6.3 mm jack)
• 2 Audio outputs and scope output (6.3 mm jack)
• Stereo headphone output (6.3 mm jack)
• MIDI In / Thru (DIN 5-pin)
• Dimensions (W x D x H): 457 x 309 x 115 mm
• Weight: 4.05 kg
• Includes external power supply (12 V DC)
