Exterene actieve GPS/Galileo/GLONASS antenne - Nieuw
330sinds 25 jun. '25, 19:47
€ 4,50
Ophalen of Verzenden
Thuisbezorgd via DHL vanaf € 3,95
Kenmerken
ConditieNieuw
TypeAntenne
Beschrijving

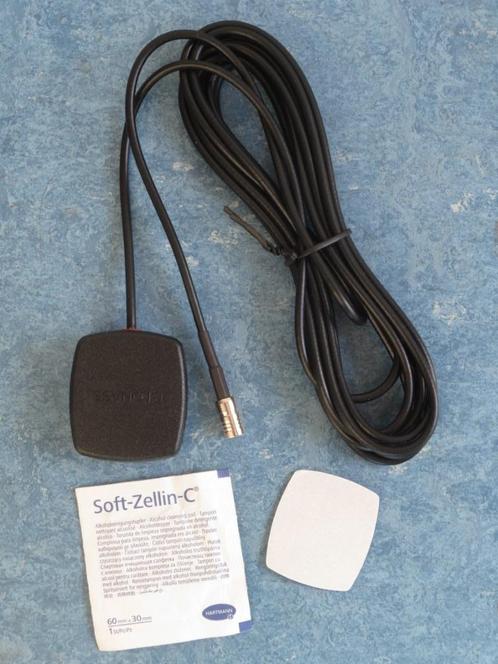

Exterene actieve GPS/Galileo/GLONASS antenne 2J4301MPGFy - Nieuw
Nieuwe externe actieve GPS/Galileo/GLONASS antenne. Fabrikaat: 2J Antenna Conceptor. Nieuw in gesealde verpakking incl. 3 meter snoer met SMB-Female RF Coaxial aansluiting.
Type: glonass 2J4301MPGFy-300RG174-C22NST
Enkele stuks beschikbaar
2J4301MPGF Antenna
GPS/GLONASS/Galileo Adhesive Magnetic Mount Antenna
GPS/GLO/QZSS/Galileo/L1
Mounting Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Dimensions (mm) 38 x 34 x 13.5/14.5
Operating temperature -40 °C to +85 °C
Certificates IP67
Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
VSWR <=1.4:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 14 @ 2.7 V
Voltage (V) 1.5 - 3.6
Current (mA) 9 Typ
Power Consumption (mW) 24.3 Typ
Saw Filter Type Pre-Filter
ESD Protection (kV) 2
Active GNSS Antenna
Ground Plane Independent
14 dB GNSS Active Gain
Pre-Filter GNSS
Voltage Range 1.5 - 3.6 V
Adhesive Mounting sticker included
SMB-Female RF Coaxial Connector
Nieuwe externe actieve GPS/Galileo/GLONASS antenne. Fabrikaat: 2J Antenna Conceptor. Nieuw in gesealde verpakking incl. 3 meter snoer met SMB-Female RF Coaxial aansluiting.
Type: glonass 2J4301MPGFy-300RG174-C22NST
Enkele stuks beschikbaar
2J4301MPGF Antenna
GPS/GLONASS/Galileo Adhesive Magnetic Mount Antenna
GPS/GLO/QZSS/Galileo/L1
Mounting Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Dimensions (mm) 38 x 34 x 13.5/14.5
Operating temperature -40 °C to +85 °C
Certificates IP67
Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
VSWR <=1.4:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 14 @ 2.7 V
Voltage (V) 1.5 - 3.6
Current (mA) 9 Typ
Power Consumption (mW) 24.3 Typ
Saw Filter Type Pre-Filter
ESD Protection (kV) 2
Active GNSS Antenna
Ground Plane Independent
14 dB GNSS Active Gain
Pre-Filter GNSS
Voltage Range 1.5 - 3.6 V
Adhesive Mounting sticker included
SMB-Female RF Coaxial Connector
