Kenmerken
Conditie
Gebruikt
Type
Antenne
Beschrijving

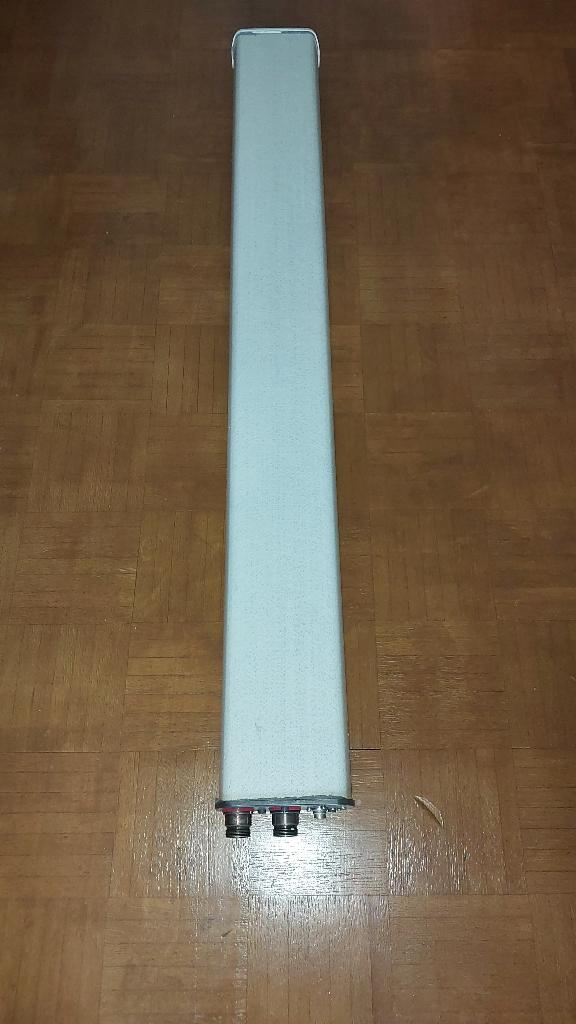

GSM Basisstation antenne. Te gebruiken tussen 808 en 960 MHz.
Kathrein’s X-polarized antennas are designed for use in digital
polarization diversity systems.
• X-polarized (+45° and -45°).
• UV resistant fiberglass radomes.
• Wideband vector dipole technology.
• DC Grounded metallic parts for impulse suppression.
General specifications:
Frequency range 806–960 MHz
VSWR 25 dB (co-polar)
Impedance 50 ohms
Intermodulation (2x20w) IM3: <-150 dBc
Polarization +45° and -45°
Maximum input power 400 watts per input (at 50°C)
Connector 2 x 7-16 DIN female
Isolation >30 dB
Weight 22 lb (10 kg)
Dimensions 50.9 x 10.2 x 3.9 inches
(1294 x 259 x 99 mm)
Wind load at 93 mph (150kph)
Front/Side/Rear 99 lbf / 48 lbf / 138 lbf
(440 N) / (210 N) / (610 N)
Wind survival rating* 120 mph (200 kph)
Mounting Fixed and tilt mount options are available for
2 to 4.6 inch (50 to 115 mm) OD masts.
Kathrein’s X-polarized antennas are designed for use in digital
polarization diversity systems.
• X-polarized (+45° and -45°).
• UV resistant fiberglass radomes.
• Wideband vector dipole technology.
• DC Grounded metallic parts for impulse suppression.
General specifications:
Frequency range 806–960 MHz
VSWR 25 dB (co-polar)
Impedance 50 ohms
Intermodulation (2x20w) IM3: <-150 dBc
Polarization +45° and -45°
Maximum input power 400 watts per input (at 50°C)
Connector 2 x 7-16 DIN female
Isolation >30 dB
Weight 22 lb (10 kg)
Dimensions 50.9 x 10.2 x 3.9 inches
(1294 x 259 x 99 mm)
Wind load at 93 mph (150kph)
Front/Side/Rear 99 lbf / 48 lbf / 138 lbf
(440 N) / (210 N) / (610 N)
Wind survival rating* 120 mph (200 kph)
Mounting Fixed and tilt mount options are available for
2 to 4.6 inch (50 to 115 mm) OD masts.
...
...
...
...
...
...
...
...
...
...
...
...
