Complete, second-user Polycom HDX 9002 system with Multipoint, perfect for medium to large boardroom use.
Polycom HDX systems are prized by system integrators for their reliability, and continue to benefit from Polycom support. The HDX9002 is designed to be rack mounted in a 19″ 2U system.

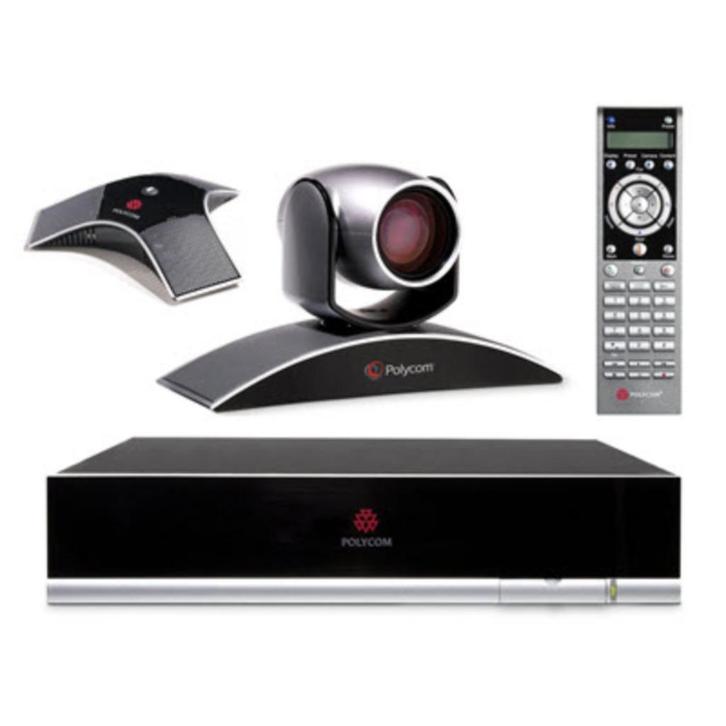

It includes:

• Codec
• EagleEye camera
• Microphone
• Remote
• All essential cables
• Revision A hardware
• Latest firmware and Multipoint Options installed

The system shows some slight signs of cosmetic wear and the remote may be missing some pixels, but works perfectly.

Specifications :

• Package Includes : Codec, HDX Microphone Array, point-to-point, People+Content™, People+Content IP, People on Content™, cables and remote controle
• Video Standards and Protocols

– H.264, H.264 High Profile, H.263++, H.261
– H.239 / Polycom People+Content
– H.263 & H.264 Video Error Concealment

• Video Input

– 2 x Polycom EagleEye™ HD camera
– 1 x Component (main camera #1)
– 1 x Component (VCR/DVD)
– 1 x DVI-I

• Video Out

– 2 x DVI-I HD video out
– 1 x BNC (S-Video/Composite) VCR

• People Video Resolution

– 720p, 30 fps from 512 Kbps
– 720p, 60 fps from 832 Kbps
– 1080p, 30 fps from 1024 Kbps
– 4SIF/4CIF, 30 fps from 128 Kbps
– 4SIF/4CIF, 60 fps from 512 Kbps
– SIF (352 x 240), CIF (352 x 288)
– QSIF (176 x 120), QCIF (176 x 144)

• Content Video Resolution

– Input: WSXGA+ (1680 x 1050), SXGA (1280 x 1024), HD (1280 x 720), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)
– Output: 720p (1280 x 720),
1080 (1920 x 1080), XGA (1024 x 768), SVGA (800 x 600)
– Content Frame Rate: 30 fps

• Camera

– Polycom EagleEye camera
– 1280 x 720p CCD imager
– 12X optical zoom, 72° FOV min
– Polycom EagleEye 1080 Camera
– 1920 x 1080 CMOS imager
– 10X optical zoom, 70° FOV min
– Polycom EagleEye View camera
– 1920 x 1080 EPTZ camera
– 4X digital zoom, 55° FOV min
– Internal stereo microphones

• Audio Input

– 4 HDX microphone arrays supported
– 1 x Line-level stereo in (Phoenix)
– 1 x PC audio in (Phoenix)
-1 x VCR / DVD stereo audio-in (Phoenix)

• Audio Standards and Protocols

– Polycom StereoSurround™
– 22 kHz bandwidth with Polycom Siren™ 22
– 14 kHz bandwidth with Polycom Siren 14, G.722.1 Annex C
– 7 kHz bandwidth with G.722, G.722.1
– 3.4 kHz bandwidth with G.711, G.728, G.729A
– Automatic gain control
– Automatic noise suppression
– Keyboard noise reduction
– Live Music Mode
– Instant adaptation echo cancellation
– Audio error concealment

• Other ITU-Supported Standard

H.221, H224/H.281, H.323 Annex Q, H.225, H.245, H.241, H.331, H.239, H.231, H.243, H.460, BONDING, Mode 1

• Network

– Polycom iPriority™ for QoS
– Interfaces
– 2-port 10/100 auto NIC switch (RJ45)
– H.323 and/or SIP up to 6 Mbps
– Polycom Lost Packet Recovery™ (LPR™)
– Reconfigurable MTU size (IP only)
– 2 x RS232 (camera control on both)
Second RS232 port includes:
– Data pass-through
– Audio mixer control
– Full serial API support
– H.320 (optional)
– ISDN Quad BRI, PRI T1 or E1
– Serial (RS449, V.35 RS530 with RS366 dialing)
– Auto SPID detection and line number configuration
– 1 x Analog phone interface (POTS)
– Microsoft® Office Communications Server integrationUser Interface- Directory services
– System management
– Web-based
– SNMP
– Polycom Converged Management
Application™ (CMA™)
– International languages (17)
– Wildcard language tool
– USB software updateSecurity- Secure Web
– Security mode
– AES FIPS 197, H.235V3 and H.233/234
– FIPS 140-2 Validation Certificate (#918)
– IPv6 (DISA)
– Secure password authentication

• Options

– Ceiling microphones
– Extension cables
– MPPlus software for up to 4 sites (HDCP)
– Network interfaces modules
– IP 7000 speakerphone integration
– Polycom HDX Media Center options
– IR remote receiver
– Polycom SoundStructure™

• Electrical

– Auto sensing power supply
– Typical operating voltage/power
189VA @ 115V @ 60 Hz @ .67 PF
192VA @ 230V @ 60 Hz @ .66 PF
196VA @ 230V @ 50 Hz @ .65 PF

• Environmental Specification

– Operating temperature: 0-40°C
– Operating humidity: 10-80%
– Non-operating temperature: 40°-70°C
– Non-operating humidity
(non-condensing): 10-90%
– Maximum altitude: 10,000 feet

• Physical Characteristics

– Video base unit
– 17.2″ x 3.4″ x 14.5″ (H/W/D standing)
– 20 lbs
