Included:

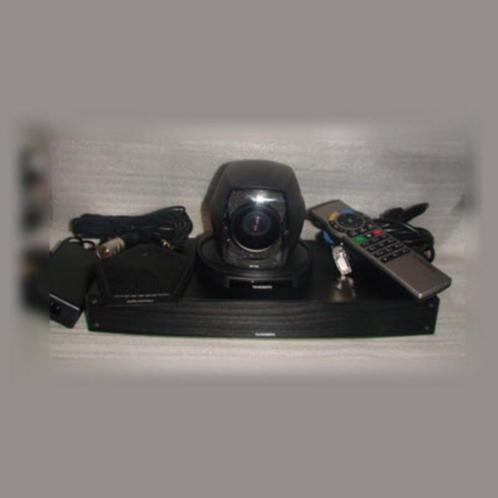

• 1 x Tandberg 3000MXP Codec TTC7-09 PAL HD TelePresence Video Conferencing System
• 1 x Ethernet Cable
• 1 x AC Adapter
• 1 x VGA to DVI + Audio Cable
• 1 N Wave II Pal camera unit
• remote
• AT871R uniplat external microphone

Specification:BANDWIDTH

• H.320 up to 512 kbps
• H.323 up to 2 Mbps
• SIP up to 2 Mbps

FIREWALL TRAVERSAL

• TANDBERG ExpresswayTM Technology, Auto NAT, H.460.18, H.460.19 Firewall Traversal

VIDEO STANDARDS

• H.261, H.263, H.263+, H.263++ (Natural Video), H.264

VIDEO FEATURES
Native 16:9 Widescreen, Advanced Screen Layouts, Picture in Picture (PIP), Picture outside Picture & Large POP, Side by Side, PC Zoom, Intelligent Video Management, Simultaneous videoconference & local PC mode, Local Auto Layout

VIDEO INPUTS (5 INPUTS)

• 1 x 9 Pin DSUB:HD Main camera or S-video & control main camera
• 1 x MiniDin, S-video: auxiliary/document camera
• 1 x RCA/Phono, composite: document camera/aux
• 1 x RCA/Phono, composite: VCR
• 1 x DVI-I: PC
• Input: 800 x 600 (@ 60, 72,75,85 hz), 1024 x 768(@ 60, 70, 75 hz), 1280 x 720 (HD720P) (@ 50, 60 Hz), 1280 x 1024 @ 60hz
• Extended Display Identification Data (EDID)

VIDEO OUTPUTS (4 OUTPUTS)

• 1 x MiniDin, S-video: main monitor
• 1 x RCA/Phono, composite: main monitor or VCR
• 1 x RCA/Phono, composite: dual monitor or VCR
• 1 x DVI-I/XGA: main or second monitor

XGA OUTPUT800 x 600 @ 75hz, 1024 x 768 @ 60 hz, 1280 x 768 (WXGA) @ 60 hz, 1280 x 720 (HD720p) @ 60Hz
VESA Monitor Power Management

VIDEO FORMAT

• NTSC, PAL, VGA, SVGA, XGA, W-XGA, SXGA and HD720p

AUDIO STANDARDS

• G.711, G.722, G.722.1, G.728
• 64 bit & 128 bit MPEG4
• AAC-LD

AUDIO FEATURESCD-Quality 20KHz Mono and Stereo, Telephone add-on via MultiSite, Two separate acoustic echo cancellers, Audio mixer, Automatic Gain Control (AGC), Automatic Noise Reduction, Audio level meters, VCR ducking, Packet loss management, Active lip synchronization, Digital Natural Audio Module (DNAM), 2*30 W output power, 2 integrated speakers, GSM interference audio feature

AUDIO INPUTS (4 INPUTS)

• 2 x microphone, 24V phantom powered, XLR connector
• 1 x RCA/Phono, Line Level: auxiliary (or VCR Stereo L)
• 1 x RCA/Phono, Line Level: VCR/DVD (Stereo R)

AUDIO OUTPUTS (2 OUTPUTS)

• 1 x RCA/Phono, S/PDIF (mono/stereo) or Analogue Line Level: main audio or Analogue Stereo L
• 1 x RCA/Phono, Line Level: VCR or Analogue Stereo R

FRAME RATES

• 30 frames per second @ 168 kbps and above 60 fields per second @ 336 kbps and above (Point-to-point)

DUAL STREAM
DuoVideo, H.239 dual stream, Dynamic bandwidth adjustment (H.323), Available on H.323, H.320 & SIP, Available in Multisite from any site, BFCP

NETWORK FEATURES
Auto H.320/H.323 dialing, SIP, Downspeeding, Programmable network profiles, Intelligent Call Management, Maximum call length timer, Automatic SPID and line number configuration, (National ISDN, GR-2941-CORE), SoftMux, H.331 Broadcast Mode, NATO standard KG194/KIV-7 encryptor support, URI Dialing

In nette staat !!
