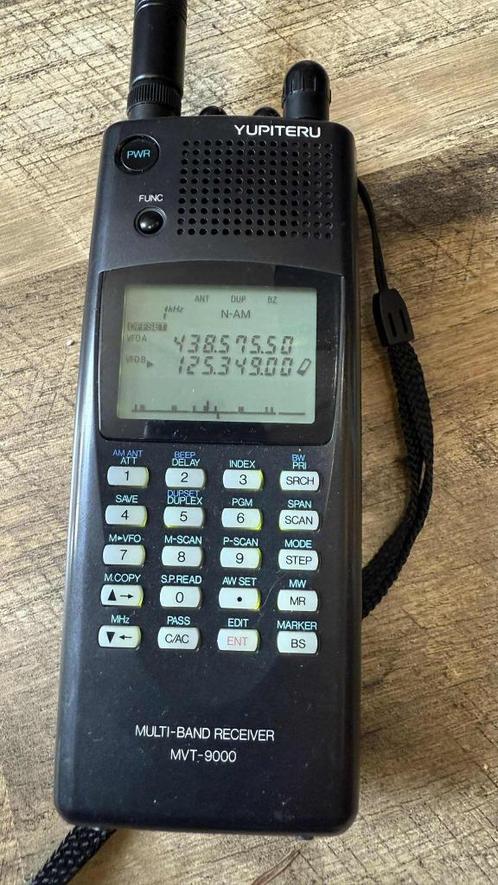

MVT9000 Yupiteru all mode scanner
HF/VHF/UHF receiver Frequency range: 0.53-2039 MHz

Type:HF/VHF/UHF receiver/scanner Frequency range: 0.53-2039 MHz Tuning steps:50 / 100 / 200 / 500 Hz
1 / 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 KHz Frequency stability:? ppm Mode:AM / FM / WFM / SSB / CW Channels / memory management: 1000 regular in 20 banks with alpha tags
20 search banks
Non volatile EEPROM storage Power supply:4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries)
or 12 VDC external Current drain / power consumption:? mA Antenna impedance / connector:50 ohm / BNC Dimensions (W*H*D):66*155*40 mm (2.6*6.1*1.58") Weight:410 g (14.46 oz) Other features:Realtime bandscope.



RECEIVER SECTION Receiver system: ? conversion superheterodyne Sensitivity: AM (10 dB S/N)
2-30 MHz: 2.5 uV
30-470 MHz: 1 uV
FM (12 dB SINAD)
30-470 MHz: 0.5 uV
470-1000 MHz: 0.75 uV
1000-1300 MHz: 1 uV
1300-2039 MHz: 2 uV
WFM (12 dB SINAD)
30-470 MHz: 1 uV
470-1000 MHz: 1.5 uV
SSB/CW (10 dB S/N)
2-30 MHz: 1 uV
30-470 MHz: 0.5 uV
