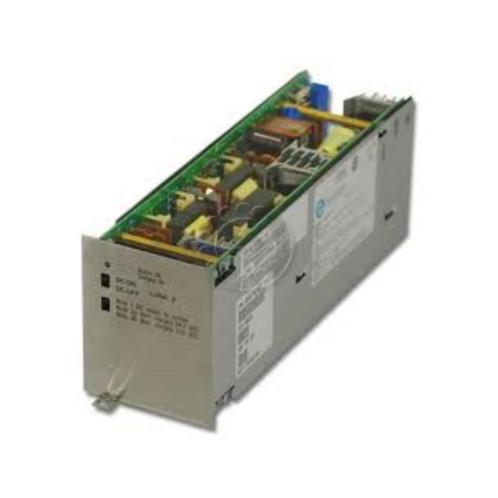

Siemens Unify Luna 2 Power Supply HiPath 3800

For openscape business x8 and hipath 3800. Basic box (max. 9 Peripheral cards): max. 3 × Luna2. The first luna2 powers the mainboard and up to 4 peripheral cards. A second luna2 is required for the 5th to 9th peripheral cards. If one of the first 4 cards is an stmi2, slma or slcn, a 2nd luna2 is immediately required, regardless of the total number of cards. A ups power backup connection always requires an additional luna2. Expansion box (max. 13 Peripheral cards): max. 4 × Luna2. The first luna2 powers up to 4 peripheral cards. A second luna2 is required for the 5th to 9th peripheral cards and a third luna2 for the 10th to 13th. If one of the first 4 cards is an stmi2, slma or slcn, a 2nd luna2 is immediately required, and a third luna2 required from the 5th card onwards. A upspower backup connection always requires an additional luna2. The battery boxes (l30252-u600-a312 or l30252-u600-a261) do not require an additional luna2 in the osbiz x8 or hipath 3800, as they have an integrated charging unit. Stmi2 card no longer used in osbiz.

3 Stuks beschikbaar
