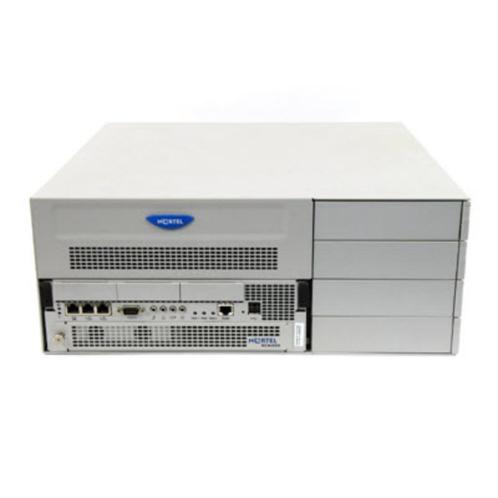

The Nortel BCM450 Main Unit has the ability to support up to 100 users with the base model as well as the ability to support up to 300 users with the new Capacity Expansion Card(CEC) that can plug into the unit.

Features

• High capacity
• Operability
• Simplified hardware platform: New Business Communications Manager hardware components – including; the Base Function Tray (BFT), Chassis Interface Board (CIB) and Capacity Expansion Card (CEC).

• Meet-Me Conferencing (MMC)
• One Year Warranty

Specifications

• Media Bay Modules: Up to four
• CPU Processor: Freescale (1.3GHz core)
• Memory (RAM): 512MB DDR2 SDRAM
• Hard Drive: 80GB SATA
• DSP: 3 TI 600MHz DSPs
• Capacity Expansion Card (optional): Expansion Daughter Card with 4 TI 600MHz DSPs
• Power on self-test with LED feedback
• Two System Status LEDs (Power and Status)
• Three hard drive activity LEDs (HDD1, HDD2, RAID) (RAID LED not supported on BCM450 Rls. 1)
• Reset button
• Platform Status Monitor
• BCM Monitor monitors overall system status, IP telephony functions, utilization of resources, operation of telephony applications and status of PRI, BRI and IP trunks

Dit is een nieuw product in geopende doos !!
