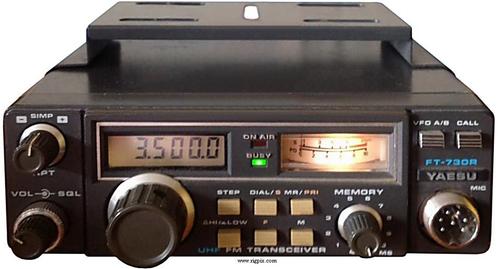

YAESU 730R mobiele UHF zend/ontvanger met microfoon YM-47.

Amateur UHF transceiver
Frequency range: Europe, version B & C
TX: 430-440 MHz
RX: 430-440 MHz
USA, version A
TX: 440-450 MHz
RX: 440-450 MHz
Version X
TX: 430-440 MHz
RX: 430-440 MHz
Tuning steps: 25 / 100 KHz
Frequency stability: ±? ppm
Mode: FM
Channels / memory management: 10 regular
Priority function
RAM storage with lithium battery backup
Repeater shift / offset: ±5 MHz (Version A: USA)
-7.6 MHz (Version B: Europe)
+1.6 MHz (Version C: Europe)
±5 MHz (Version X)
Power supply: 13.8 VDC (2-pin metal locking ring connector)
Current drain / power consumption: RX: 300 mA (Squelched)
TX: Max 3 A
Antenna impedance / connector: 50 ohm / N-jack
Dimensions (W*H*D): 150*50*174 mm (5.91*1.97*6.85")
Weight: 1.5 Kg (3.31 lb)
Other features: 1750 Hz repeater tone (Europe), 1800 Hz (USA).




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 46.255 MHz
2nd IF: 455 KHz
Sensitivity: 0.25 uV (12 dB SINAD)
Selectivity: 15 KHz (-6 dB)
30 KHz (-60 dB)
Image rejection:
AF output power / speaker: 1 W at ?% distortion / 8 ohm
External speaker connector: 3.5 mm




TRANSMITTER SECTION
RF output power:

High Low
70 cm: 10 W 1 W

NB! The low power setting is only available for the European versions
Modulation system: Variable reactance
Max FM deviation (Factory set): ±5 KHz
Spurious emissions: Better than -60 dB
Microphone impedance / connector: 500-600 ohm / 7-pin (Metal locking ring connector)
Microphone input level: 15 mV @ 1 KHz for ±4.5 KHz deviation
1.5 mV @ 1 KHz for ±3.5 KHz deviation




MISCELLANEOUS
Manufactured: Japan, 1983-198x (Discontinued)
Additional info:
Related documents: User manual (10.6 MB)
RF power module: Mitsubishi M57704M
