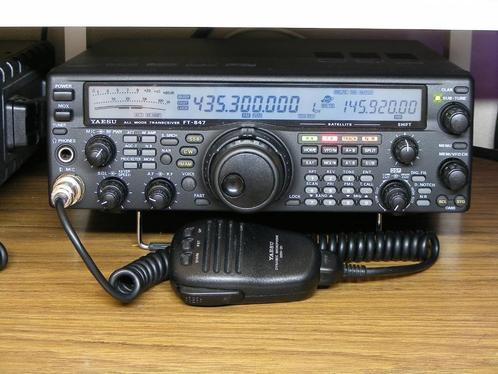

Yaesu ft-847 HF Transceiver met 3 maanden Garantie

Ft-847 HF/6/2 en 70cm all mode Transceiver
Tx en Rx breed!!!!!
12Vsn en microfoon.

in nette staat
geen doos!!!!
vaste prijs


Type:Amateur HF/VHF/UHF transceiver Frequency range:TX: 10-160 m + WARC/50-54 / 144-146 / 430-440 MHz (also 4 meters in the UK)
RX: 0.1-30 / 36-76 / 108-174 / 420-512 MHz Mode:AM/FM/SSB/CW RF Power output:FM/SSB/CW: 100/100/50/50 W
AM: 25/25/12.5/12.5 W Receiver system:N/A Sensitivity: AM-N (10 dB S/N)
0.5-1.8 MHz: 20 uV
1.8-30 MHz: 2 uV
50-54 MHz: 1 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
50-54 MHz: 0.25 uV
2 m: 0.2 uV
70 cm: 0.2 uV
SSB/CW (10 dB S/N)
1.8-30 MHz: 0.25 uV
50-54 MHz: 0.2 uV
2 m: 0.125 uV
70 cm: 0.125 uV
Selectivity: AM: 9 KHz (-6 dB), 20 KHz (-60 dB)
AM-N: 2.2 KHz (-6 dB), 4.5 KHz (-60 dB)
FM: 15 KHz (-6 dB), 30 KHz (-60 dB)
FM-N: 9 KHz (-6 dB), 20 KHz (-60 dB)
SSB/CW: 2.2 KHz (-6 dB), 4.5 KHz (-60 dB)
CW-N: 0.5 KHz (-6 dB), 2 KHz (-60 dB) - with optional YF-115C installed





Selectivity



:
AM: 9 KHz (-6 dB), 20 KHz (-60 dB)
AM-N: 2.2 KHz (-6 dB), 4.5 KHz (-60 dB)
FM: 15 KHz (-6 dB), 30 KHz (-60 dB)
FM-N: 9 KHz (-6 dB), 20 KHz (-60 dB)
SSB/CW: 2.2 KHz (-6 dB), 4.5 KHz (-60 dB)
CW-N: 0.5 KHz (-6 dB), 2 KHz (-60 dB) - with optional YF-115s installed


Type:

Amateur HF/VHF/UHF transceiver Frequency range:TX: 10-160 m + WARC/ 50-54 / 144-146 / 430-440 MHz (also 4 meters in the UK)
RX: 0.1-30 / 36-76 / 108-174 / 420-512 MHz Mode:AM/FM/SSB/CW RF Power output:FM/SSB/CW: 100/100/50/50 W
AM: 25/25/12.5/12.5 W Receiver system:
Sensitivity: AM-N (10 dB S/N)
0.5-1.8 MHz: 20 uV
1.8-30 MHz: 2 uV
50-54 MHz: 1 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
50-54 MHz: 0.25 uV
2 m: 0.2 uV
70 cm: 0.2 uV
SSB/CW (10 dB S/N)
1.8-30 MHz: 0.25 uV
50-54 MHz: 0.2 uV
2 m: 0.125 uV
70 cm: 0.125 uV
Selectivity: AM: 9 KHz (-6 dB), 20 KHz (-60 dB)
AM-N: 2.2 KHz (-6 dB), 4.5 KHz (-60 dB)
FM: 15 KHz (-6 dB), 30 KHz (-60 dB)
FM-N: 9 KHz (-6 dB), 20 KHz (-60 dB)
SSB/CW: 2.2 KHz (-6 dB), 4.5 KHz (-60 dB)
CW-N: 0.5 KHz (-6 dB), 2 KHz (-60 dB) - with optional YF-115C installed
Image rejection:60 dB Voltage:13.8 VDC ±10% Current drain:RX: 1.5-2 A
TX: Max 22 A
