KENWOOD TS 770 basis ALL MODE VHF / UHF transceiver

Kenwood ts770
All mode
VHF UHF

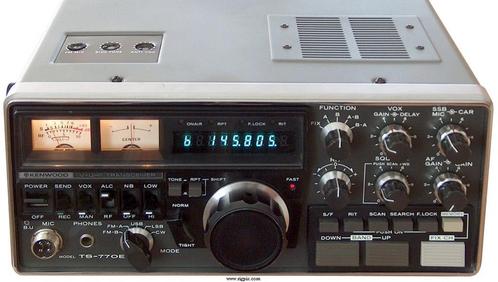

A picture of Trio TS-770
SPECIFICATIONS

GENERAL
Type: Amateur VHF/UHF transceiver
Frequency range: TX: 144-146 / 430-440 MHz
RX: 144-146 / 430-440 MHz
Tuning steps: 20 / 200 Hz
Frequency stability: ±1 KHz during the first hour after one minute warmup
Within 150 Hz during any 30 minute period thereafter
Mode: FM / SSB / CW
Channels / memory management: 8 regular
RAM storage with optional battery backup
Repeater shift / offset: No dedicated. Use VFO A/B split instead
Power supply: Mains: 220 VAC
or 12-16 VDC
(4-pin Jones connector)
Current drain / power consumption: RX: 1.5 A @ 13.8 VDC (No signal)
TX: Max 6 A @ 13.8 VDC
Antenna impedance / connector: 50 ohm / Two SO-239
Dimensions (W*H*D): 290*124*320 mm (11.42*4.88*12.6")
Weight: 11 Kg (24.2 lb)
Other features: 1750 Hz repeater tone. VOX. NB. RIT.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 21.6 MHz
2nd IF: 8.83 MHz (455 KHz for 2 m FM)
Sensitivity: FM: 1 uV (30 dB S+N/N)
SSB/CW: 0.25 uV (10 dB S+N/N)
Squelch sensitivity: 0.25 uV (Treshold)
Selectivity: FM
12 KHz (-6 dB)
24 KHz (-60 dB)
SSB
2.4 KHz (-6 dB)
4.8 KHz (-60 dB)
Image rejection: 1st IF: 60 dB
2nd IF: 50 dB
AF output power / speaker: 2.5 W at 10% distortion / 4 ohm
External speaker connector: TS "Minijack" (3.5 mm), 4-8 ohm




TRANSMITTER SECTION
RF output power:

High Low
2 m: 10 W 1 W
70 cm: 10 W 1 W
Modulation system: FM: Variable reactance frequency shift
SSB: Balanced modulation
Max FM deviation (Factory set): ±5 KHz
Spurious emissions: Better than -60 dB
Microphone impedance / connector: 500-600 ohm / 4-pin (Male locking ring jack)
Microphone input level: ? mV



Wordt geleverd met originele handmike manual

Set verkeerd in zeer nette staat

Basis set ( dus geen voeding nodig ) weegt 11 kilo

Prijs is bieden
Staat niet in de weg en eet ook geen brood

Afhalen in Leiden
Verzenden kosten koper €14,50 via post.nl
