Sony ST-SE520 tuner omgbouwd voor 3,5m (japanse mode)€ 99,00
Kenmerken
Conditie
Gebruikt
Type
Zender en Ontvanger
Beschrijving

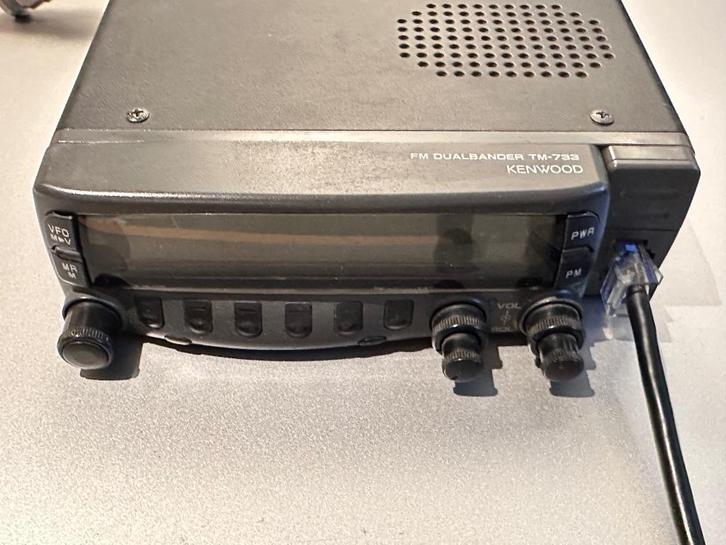

Kenwood TM733 Dualbander in nette staat met antenne
De antenne is voor zover ik mij goed herinner een 3 bander:
2m / 70cm / 23cm
SPECIFICATIONS
Type:Amateur VHF/UHF transceiver
Frequency range:
TX: 144-146 / 430-440 MHz
RX: 118-174 / 430-440 MHz
Tuning steps: 5 / 10 / 12.5 / 15 / 20 / 25 KHz
Frequency stability:±10 ppm @ -20 to +60°C (-4 to 140°F)
Mode:TX: FM
RX: AM / FM
Channels / memory management:70 regular 1 call
RAM storage with rechargeable lithium backup battery
Repeater shift / offset:2 m: ±600 KHz
70 cm: ±1.6 and -7.6 MHz
Power supply:13.8 VDC ±15%
Current drain / power consumption:
RX: Less than 1.2 A (No signal)
TX: Less than 11.5 A
Antenna impedance / connector:50 ohm / N-connector
Dimensions (W*H*D):141*42*165 mm (5.55*1.65*6.5")
Weight:1.1 Kg (2.4 lb)
Other features:Detachable front panel.
1K2 / 9K6 packet jack. AIP. Dimmer.
CTCSS/PL encoder.
DTMF. DTSS. 1750 Hz repeater tone.
Twin RX.
Output power:
High Mid Low
2 m: 50W 10W 5W
70 cm: 35W 10W 5W
De antenne is voor zover ik mij goed herinner een 3 bander:
2m / 70cm / 23cm
SPECIFICATIONS
Type:Amateur VHF/UHF transceiver
Frequency range:
TX: 144-146 / 430-440 MHz
RX: 118-174 / 430-440 MHz
Tuning steps: 5 / 10 / 12.5 / 15 / 20 / 25 KHz
Frequency stability:±10 ppm @ -20 to +60°C (-4 to 140°F)
Mode:TX: FM
RX: AM / FM
Channels / memory management:70 regular 1 call
RAM storage with rechargeable lithium backup battery
Repeater shift / offset:2 m: ±600 KHz
70 cm: ±1.6 and -7.6 MHz
Power supply:13.8 VDC ±15%
Current drain / power consumption:
RX: Less than 1.2 A (No signal)
TX: Less than 11.5 A
Antenna impedance / connector:50 ohm / N-connector
Dimensions (W*H*D):141*42*165 mm (5.55*1.65*6.5")
Weight:1.1 Kg (2.4 lb)
Other features:Detachable front panel.
1K2 / 9K6 packet jack. AIP. Dimmer.
CTCSS/PL encoder.
DTMF. DTSS. 1750 Hz repeater tone.
Twin RX.
Output power:
High Mid Low
2 m: 50W 10W 5W
70 cm: 35W 10W 5W
...
...
...
...
...
...
...
...
...
...
...
...
Dordrecht
322x bekeken
2x bewaard
Sinds 5 sep '25
Advertentienummer: m2307854391
