Vaste prijs
ziet er netjes uit

tx=wide
Manual/handmike
ingebouwde voeding(standaard)
Display in goede staat!!!!
eventueel DMU beschikbaar

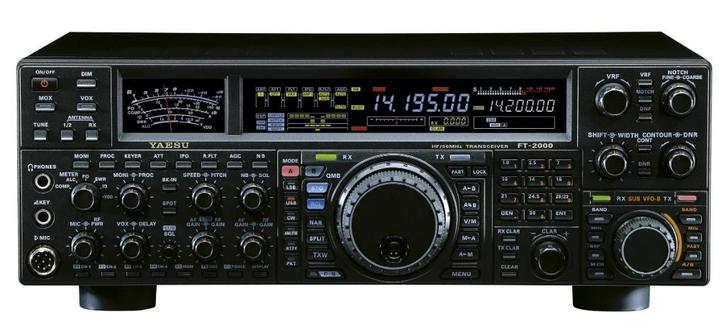

GENERAL
Type:Amateur HF/VHF transceiverFrequency range:TX: 10-160 m + WARC / 50-54 MHz
RX: 0.03-60 MHzTuning steps:1 / 5 / 10 Hz (AM/SSB/CW)
100 Hz (FM)Frequency stability:±0.5 ppm @ 25°C (77°F), after 1 minute warmupMode:AM / FM / SSB / CW / RTTY / PacketChannels / memory management:99 regular
5 QMB
9 scan edge pairs (PMS)
Non-volatile EEPROM storage
(The antenna tuner memory requires a CR2032 lithium battery backup)Repeater shift / offset:10 m: 0-1 MHz in 10 KHz steps
6 m: 0-4 MHz in 10 KHz stepsPower supply:Mains: 90-132 / 180-264 VAC or 200-240 VAC (3-pin IEC C14 connector)
or 13.8 VDC ±10%Current drain / power consumption:RX: 80 VA @ mains
TX: Max 450 VA @ mainsAntenna impedance / connector:50 ohm / Two SO-239 plus one RX only
(16.7-150 ohm HF and 25-100 ohm 6 m with ATU on)Dimensions (W*H*D):410*135*350 mm (16.1*5.3*13.8")Weight:14.5 Kg (32 lb)Other features:CTCSS/PL. CAT control. RF/LF scope. VRF preselector. High dynamic range front end.
Automatic antenna tuner. VOX. Transverter jacks. IF-DSP. Twin RX



RECEIVER SECTIONReceiver system:Main: Triple conversion superheterodyne
1st IF: 69.45 MHz
2nd IF: 450 KHz
2nd IF: 30 KHz (24 KHz for AM/FM)
Sub: Double conversion superheterodyne
1st IF: 40.455 MHz
2nd IF: 455 KHzSensitivity:AM (10 dB S/N, 6 KHz BW)
0.1-1.8 MHz: 6 uV
1.8-30 MHz: 2 uV
50-54 MHz: 1 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
50-54 MHz: 0.35 uV
SSB/CW (10 dB S/N, 2.4 KHz BW)
0.1-1.8 MHz: 2 uV
1.8-30 MHz: 0.2 uV
50-54 MHz: 0.125 uVSelectivity:Main (VFO-A). Width: Center. VRF: Off
Mode-6 dB-60 dBAM6 KHz15 KHzFM15 KHz25 KHzSSB2.4 KHz3.6 KHzCW/RTTY/PKT500 Hz750 Hz
Sub (VFO-B)
Mode-6 dB-60 dBAM6 KHz15 KHzFM12 KHz30 KHzSSB2.2 KHz4.5 KHzCW/RTTY/PKT1.1 KHz3 KHzImage rejection:70 dB (HF)
60 dB (6 m)AF output power / speaker:2.5 W at 10% distortion / 4 ohmExternal speaker connector:3.5 mm, 4-8 ohm



TRANSMITTER SECTIONRF output power:
HF6 mAM:2-25 W2-25 WFM:5-100 W5-100 WSSB (PEP):5-100 W5-100 WCW:5-100 W5-100 WModulation system:AM: Low-level (Early stage)
FM: Variable reactance
SSB: BalancedMax FM deviation (Factory set):Normal: ±5 KHz
Narrow: ±2.5 KHzSpurious emissions:Better than -60 dB (HF)
Better than -70 dB (6 m)Microphone impedance / connector:200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Metal locking ring connector)Microphone input level:? mV



MISCELLANEOUSManufactured:Japan, 2007-201x (Discontinued)Additional info:
Related documents:User manual (6.6 MB)
CAT manual (379 KB)
