Komt binnen!!!!!
mooie uitvoering
3 mnd garantie, incl. micr. en 12v snoer,

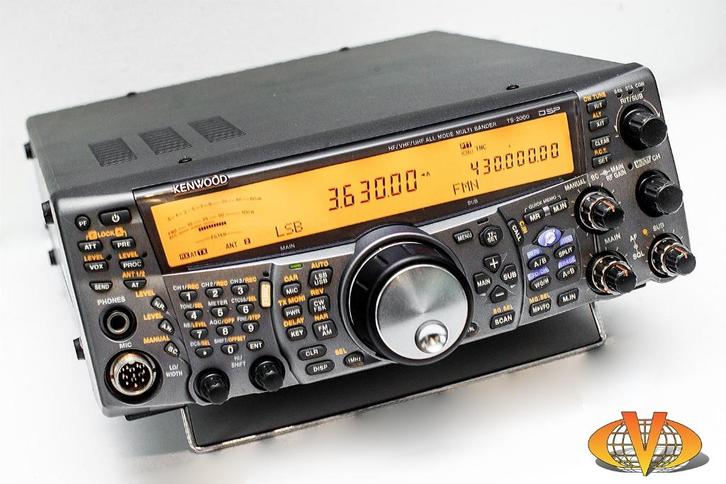

Kenwood TS2000 (TX-wide)
GEEN ROKERS
bestellen via mijn web site


GENERAL Type:Amateur HF/VHF/UHF transceiver Frequency range:TX: 10-160 m + WARC / 6 m / 2 m / 70 cm
RX: 0.03-60 / 118-174 / 220-512 MHz
Tuning steps:From 1 MHz down to 1 Hz Mode:AM/FM/NFM/SSB/CW/FSK Channels/memory management:300 regular Repeater shift/offset:±0-59.95 MHz in 50 KHz steps Power supply:13.8 VDC ±15% Current drain/power consumption:RX: Squelched 2.6 A
TX: Max 20.5 A Antenna impedance/connector:50 ohms / 3*SO-239, 1*N-type (+1*N-type for 23 cm/UT-20
(16.7-150 ohms on HF/6 m with built-in autotuner) Dimensions (W*H*D):281*107*371 mm (11.06*4.21*14.61") Weight:7.8 Kg (17.2 lbs) Other features:CTCSS/PL, DCS. DSP. Built-in 1K2/9K6 TNC. Auto-AT on HF/6 m. DX-Cluster functions.
Can also be operated via computer or optional RC-2000 control head
Market codes: K = Americas, E = Europe, E2 = Spain



RECEIVER SECTION Receiver system:Quadruple conversion superheterodyne (Main transceiver, except FM)
1st IF: 69.085 or 75.925 MHz (HF/6 m), 41.895 MHz (118-512 MHz),
2nd IF: 10.695 MHz
3rd IF: 455 KHz
4th IF: 12 KHz (Except FM)
Dual conversion superheterodyne (Sub-receiver)
1st IF: 58.525 MHz
2nd IF: 455 KHz Sensitivity: Main - AM (10 dB S/N)
0.5-1.7 MHz: 31.6 uV
1.7-24.5 MHz: 2 uV
24.5-30 MHz: 1.3 uV
50-54 MHz: 1.3 uV
144-146 MHz: 1 uV (All E-types)
144-148 MHz: 1.4 uV (K-type)
430-450 MHz: 1 uV
1240-1300 MHz: 1 uV
Main - FM (12 dB SINAD)
28-30 MHz: 0.22 uV
50-54 MHz: 0.22 uV
144-146 MHz: 0.18 uV (All E-types)
144-148 MHz: 0.25 uV (K-type)
430-450 MHz: 0.18 uV
1240-1300 MHz: 0.18 uV
Main - SSB/CW/FSK (10 dB S/N)
0.5-1.7 MHz: 4 uV
1.7-24.5 MHz: 0.2 uV
24.5-30 MHz: 0.13 uV
50-54 MHz: 0.13 uV
144-146 MHz: 0.11 uV (All E-types)
144-148 MHz: 0.16 uV (K-type)
430-450 MHz: 0.11 uV
1240-1300 MHz: 0.11 uV
Sub - AM (10 dB S/N)
144-146 MHz: 1.55 uV (All E-types)
144-148 MHz: 2.25 uV (K-type)
430-450 MHz: 1.55 uV
Sub - FM (12 dB SINAD)
144-146 MHz: 0.28 uV (All E-types)
144-148 MHz: 0.40 uV (K-type)
430-450 MHz: 0.28 uV Selectivity: Main - AM (Lo-cut: 100 Hz/Hi-cut: 3000 Hz)
6 KHz (-6 dB), 12 KHz (-50 dB)
Main - FM
12 KHz (-6 dB), 25 KHz (-50 dB)
Main - SSB (Lo-cut: 300 Hz/Hi-cut: 2600 Hz)
2.2 KHz (-6 dB), 4.4 KHz (-60 dB)
Sub - AM
12 KHz (-6 dB), 25 KHz (-50 dB)
Sub - FM
12 KHz (-6 dB), 25 KHz (-50 dB) Image rejection:Main: 70 dB
Sub: 60 dB AF output power/speaker:1.5 W at 10% distortion / 8 ohms External speaker connector:2*3.5 mm, 8 ohms



TRANSMITTER SECTION RF output power:
HF5-100 W (AM: 5-25 W)6 m5-100 W (AM: 5-25 W)2 m5-100 W (AM: 5-25 W)70 cm5-50 W (AM: 5-12.5 W)Modulation system:AM: Low level
FM: Reactance
SSB: Balanced Max FM deviation:FM: ±5 KHz
NFM: ±2.5 KHz Spurious emissions:HF: Less than -50 dB
