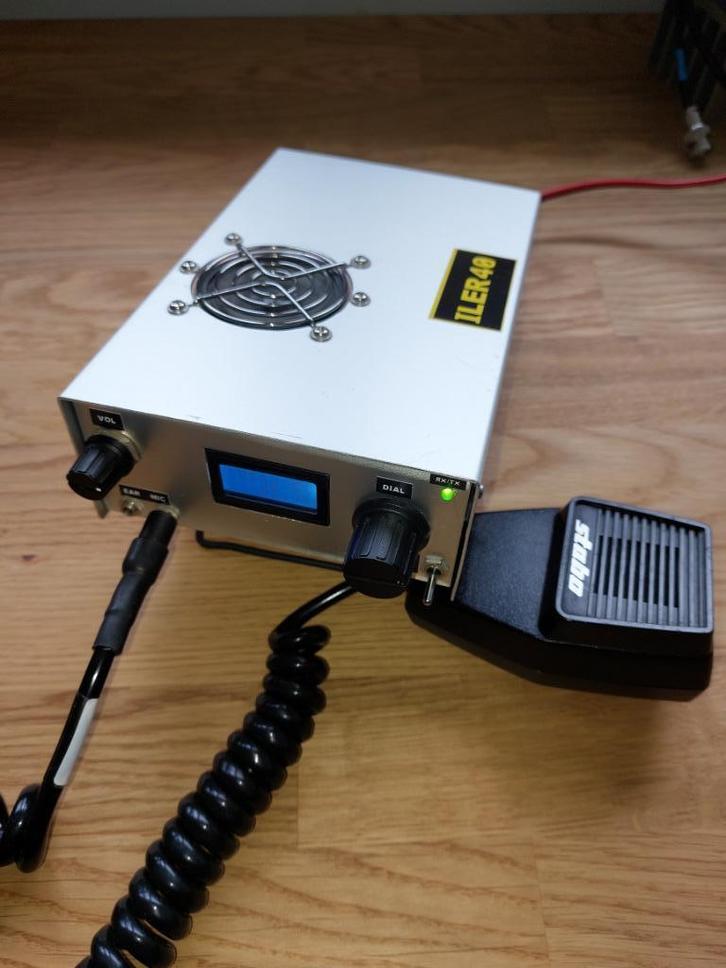

Kenmerken
Conditie
Zo goed als nieuw
Type
Zender en Ontvanger
Beschrijving
Frequency Coverage: VFO/DDS 7.000-7.200 MHz - 40M band
Power requirement: 35mA-100mA on receive, 800-900mA on transmit.
Front panel controls: tuning, volume, on/off switch, microphone (included), earphones.
External connections: 50 Ohm BNC, 12-14VDC.
TX:
RF Output: ~5 watts pep (12-14V)
Output 2nd harmonic: -42dB
Other signals spurious: -50dB or better
Carrier suppression: better than -35dB
RX:
Single conversion superheterodyne, balanced mixer
Sensitivity: 0.200uV minimum discernible signal
Selectivity: 4 pole crystals ladder filter (2,2KHz nominal BW)
IF frequency: 4.915Mhz.
Audio preamp & audio SSB filter
Audio output: 250mW @ 8 ohms (speaker included)
Automatic Gain Control (included)
Volledig gebouwd en werkend. Gaat weg i.v.m. overcompleet.
Verzendkosten koper
Power requirement: 35mA-100mA on receive, 800-900mA on transmit.
Front panel controls: tuning, volume, on/off switch, microphone (included), earphones.
External connections: 50 Ohm BNC, 12-14VDC.
TX:
RF Output: ~5 watts pep (12-14V)
Output 2nd harmonic: -42dB
Other signals spurious: -50dB or better
Carrier suppression: better than -35dB
RX:
Single conversion superheterodyne, balanced mixer
Sensitivity: 0.200uV minimum discernible signal
Selectivity: 4 pole crystals ladder filter (2,2KHz nominal BW)
IF frequency: 4.915Mhz.
Audio preamp & audio SSB filter
Audio output: 250mW @ 8 ohms (speaker included)
Automatic Gain Control (included)
Volledig gebouwd en werkend. Gaat weg i.v.m. overcompleet.
Verzendkosten koper
...
...
...
...
...
...
...
...
...
...
...
...
