FEATURES, FUNCTIONS AND SPECIFICATIONS:

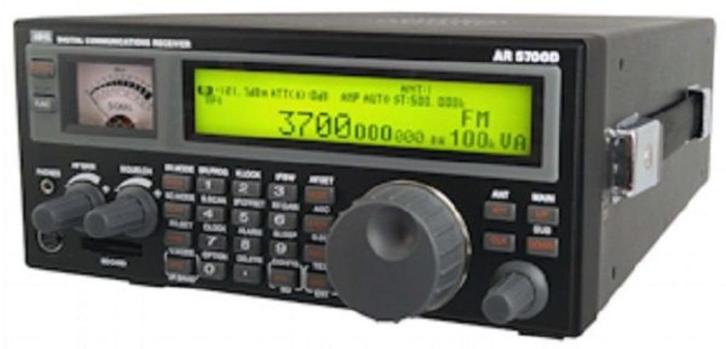

AR5700D is a high-end table-top receiver with wide band coverage between 9kHz and 3.7GHz. It supports a variety of digital, as well as analog modes. Some of its outstanding features are:
• Digital signal processing: Input signals after the 45.05MHz IF are converted from analog to digital by a DSP processor. There is no AGC in the analog processing unit, as all processing, including AGC, is done by DSP.
• High-performance analog front-end: Analog signal processing is performed by a computer simulated, high-performance distribution constant filter.
• DDS local oscillator: Instead of the conventional PLL method, the first local frequency is produced by direct digital synthesis. That method allows frequency switching at high speed.
• IF output: An analog IF of 15MHz (+/-7.5MHz) bandwidth is output.
• Digital I/Q output: A digital I/Q signal of 0.9MHz is output via a USB 2.0 interface.
High precision frequency reference: 0.01ppm frequency stability of the 10MHz internal master oscillator is achieved when using the optional GPS receiver unit.
• FFT analyzer: Thanks to the onboard FFT processor, 10MHz wide spectrum data can be output at high speed via serial.
• Multi-mode digital voice demodulation: D-STAR, YAESU, ALINCO, D-CR, NXDN, P25, dPMR, DMR, Mototrbo, TETRA. (Mode dependent restrictions apply)
• Video demodulation: By connecting and external TV monitor, it is possible to demodulate the signal of FM modulation security cameras and analog TV broadcasts. When you connect the TV monitor, you can check the demodulated video. Not compatible with digital terrestrial television.
• Simultaneous monitoring: 2 band reception, offset reception, triple reception (restrictions apply).
• SD card slot: You can record the received audio, analog and decoded digital, as well as logs.
• 12kHz analog I/Q output: Allows DRM broadcasts decoding via a PC and dedicated 3rd party software.
• HF direct sampling: When receiving HF signals, the signals are converted directly to digital without entering the mixer. This allows very good linearity characteristics.
NOTE 1 - March 2024
Firmware Updates can not be done by user, only by authorised dealers. Avera is authorised to upgrade the firmware of the AOR AR-5700D.
NOTE 2 - September 2024
AR-IQ software USB not loading: AV software can sometimes falsely detect some of the files on the IUSB drive as a virus. Please refer to receiver manual page 42 for more specific details.
NOTE 3 - SEPTEMBER 2025 - NEW MORE EASY WAT FOR FW UPDAte
PACKING INCLUDES:
1 Pc of Receiver
1 USB drive with AR-IQ software
1 Pc of User Manuak in English
FEATURES, FUNCTIONS AND SPECIFICATIONS:
AR5700D is a high-end table-top receiver with wide band coverage between 9kHz and 3.7GHz. It supports a variety of digital, as well as analog modes. Some of its outstanding features are:
• Digital signal processing: Input signals after the 45.05MHz IF are converted from analog to digital by a DSP processor. There is no AGC in the analog processing unit, as all processing, including AGC, is done by DSP.
• High-performance analog front-end: Analog signal processing is performed by a computer simulated, high-performance distribution constant filter.
• DDS local oscillator: Instead of the conventional PLL method, the first local frequency is produced by direct digital synthesis. That method allows frequency switching at high speed.
• IF output: An analog IF of 15MHz (+/-7.5MHz) bandwidth is output.
• Digital I/Q output: A digital I/Q signal of 0.9MHz is output via a USB 2.0 interface.
High precision frequency reference: 0.01ppm frequency stability of the 10MHz internal master oscillator is achieved when using the optional GPS receiver unit.
• FFT analyzer: Thanks to the onboard FFT processor, 10MHz wide spectrum data can be output at high speed via serial.
• Multi-mode digital voice demodulation: D-STAR, YAESU, ALINCO, D-CR, NXDN, P25, dPMR, DMR, Mototrbo, TETRA. (Mode dependent restrictions apply)
• Video demodulation: By connecting and external TV monitor, it is possible to demodulate the signal of FM modulation security cameras and analog TV broadcasts. When you connect the TV monitor, you can check the demodulated video. Not compatible with digital terrestrial television.
• Simultaneous monitoring: 2 band reception, offset reception, triple reception (restrictions apply).
• SD card slot: You can record the received audio, analog and decoded digital, as well as logs.
• 12kHz analog I/Q output: Allows DRM broadcasts decoding via a PC and dedicated 3rd party software.
• HF direct sampling: When receiving HF signals, the signals are converted directly to digital without entering the mixer. This allows very good linearity characteristics.
NOTE 1 - March 2024
Firmware Updates can not be done by user, only by authorised dealers. Avera is authorised to upgrade the firmware of the AOR AR-5700D.
NOTE 2 - September 2024
AR-IQ software USB not loading: AV software can sometimes falsely detect some of the files on the IUSB drive as a virus. Please refer to receiver manual page 42 for more specific details.
NOTE 3 - SEPTEMBER 2025 - NEW MORE EASY WAT FOR FW UPDAte
PACKING INCLUDES:
1 Pc of Receiver
1 USB drive with AR-IQ software
1 Pc of User Manuak in English
...
...
...
...
...
...
...
...
...
...
...
...
