Kenmerken
Conditie
Nieuw
Type
Zender
Beschrijving

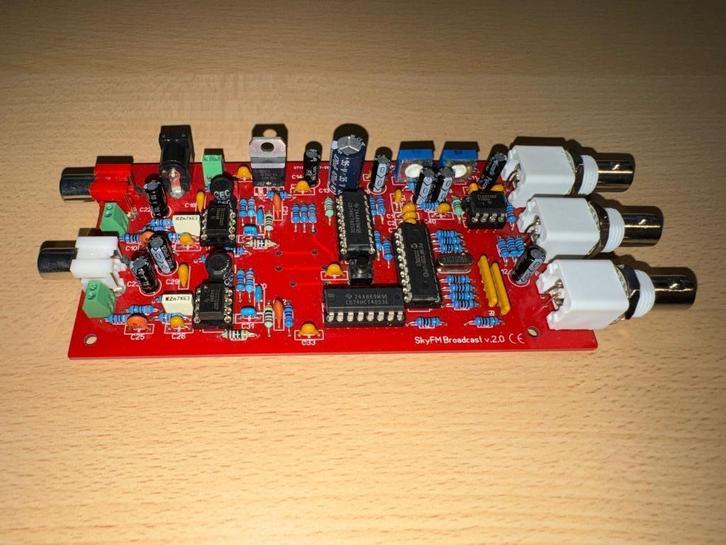

Voor een project gekocht maar nooit gebruikt:
Karakteristieken:
Supply voltage:
9-16 V (stabilized)
Quiescent supply current (12 V):
34 mA
Audio 19 kHz rejection:
45 dB
Channel separation at 1 kHz:
>55 dB
Subcarrier rejection:
>60 dB
Pilot sampling frequency:
1.843 MHz (19 kHz x 97)
Subcarrier sampling frequency:
1.843 MHz (38 kHz x 48.5)
Pilot sync. output:
TTL
Max. audio input voltage:
10 V pp (3.55 V rms)
Pilot tone level:
linear adjustable 0-0.5 V pp
Output voltage gain:
linear adjustable 0-2.5
Audio input impedance:
2000 ohm
RDS input impedance:
1000 ohm
MPX output impedance:
500 ohm
Pilot sync. output impedance:
10000 ohm
Signal-to-noise ratio:
>80 dB
Karakteristieken:
- Signal overshooting prevention (overshooting max. 10 %)
- Low noise and distortion
- Pilot tone level, audio gain and output level adjustment
- High channel separation and spectral purity in common operation
- RDS input and pilot sync. output makes easy to connect any RDS encoder
- Microcomputer controlled
Supply voltage:
9-16 V (stabilized)
Quiescent supply current (12 V):
34 mA
Audio 19 kHz rejection:
45 dB
Channel separation at 1 kHz:
>55 dB
Subcarrier rejection:
>60 dB
Pilot sampling frequency:
1.843 MHz (19 kHz x 97)
Subcarrier sampling frequency:
1.843 MHz (38 kHz x 48.5)
Pilot sync. output:
TTL
Max. audio input voltage:
10 V pp (3.55 V rms)
Pilot tone level:
linear adjustable 0-0.5 V pp
Output voltage gain:
linear adjustable 0-2.5
Audio input impedance:
2000 ohm
RDS input impedance:
1000 ohm
MPX output impedance:
500 ohm
Pilot sync. output impedance:
10000 ohm
Signal-to-noise ratio:
>80 dB
...
...
...
...
...
...
...
...
...
...
...
...
