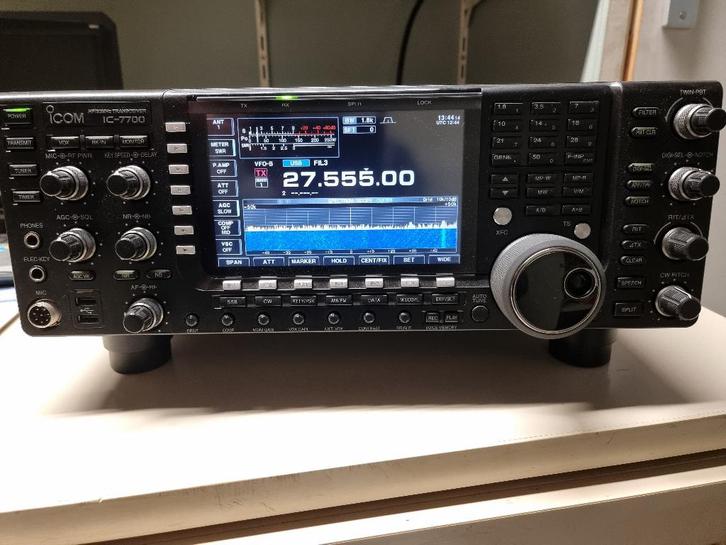

Goed werkende Icom IC-7700 HF transceiver.
De set levert goed vermogen.
De set kan hier getest worden op een antenne.
De bovenkap moet even gepolijst worden.
Tx doorlopend.
Inclusief gebruiks aanwijzing enorginele doos.
Wegens inkrimping hobby.
"alleen afhaling"
Beste mensen, dit is geen versleutelde transceiver die 20 of meer eigenaren heeft gehad.
Dus handelaars prijzen bieden heeft geen nut.

PECIFICATIONS
GENERAL
Type:
Amateur HF/VHF transceiver
Frequency range:
TX: 10-160 m + WARC / 6 m
RX: 0.03-60 MHz
Tuning steps:
Down to 1 Hz
Frequency stability:
±0.5 ppm @ 0 to 50°C (32 to 122°F)
Mode:
AM / FM / SSB / CW / RTTY / PSK31
Channels / memory management:
99 regular
2 scan edge
Non-volatile EEPROM storage
Repeater shift / offset:
±0 to 9.999 MHz in 1 KHz steps
Power supply:
Mains: 85-265 VAC (3-pin IEC C14 connector)
3 V lithium battery (CR2032) for clock and timer backup
Current drain / power consumption:
RX: 200 to 210 VA
TX: Max 800 VA
Antenna impedance / connector:
50 ohm / Four SO-239 and one BNC
Dimensions (W*H*D):
425*149*437 mm (16.69*5.91*17.2")
Weight:
22.5 Kg (50 lb)
Other features:
7" color TFT. Auto-ATU. RTTY/PSK31 decoder. DSP. Spectrum scope.
DVR. Two USB connectors. +40 dBm ultra high intercept point. CI-V.
Electronic keyer. CTCSS/PL.
RECEIVER SECTION
Receiver system:
Double conversion superheterodyne
1st IF: 64.455 MHz
2nd IF: 36 KHz
Sensitivity:
AM (10 dB S/N)
0.1-1.8 MHz: 6.3 uV (Preamp 1 on)
1.8-30 MHz: 2 uV (Preamp 1 on)
50-54 MHz: 1 uV (Preamp 2 on)
FM (12 dB SINAD)
28-30 MHz: 0.5 uV (Preamp 1 on)
50-54 MHz: 0.32 uV (Preamp 2 on)
SSB/CW/RTTY (10 dB S/N)
0.1-1.8 MHz: 0.5 uV (Preamp 1 on)
1.8-30 MHz: 0.16 uV (Preamp 1 on)
50-54 MHz: 0.13 uV (Preamp 2 on)
Selectivity:
AM (BW: 6 KHz)
6 KHz (-3 dB)
15 KHz (-60 dB)
FM (BW: 15 KHz)
12 KHz (-6 dB)
20 KHz (-60 dB)
SSB/RTTY (BW: 2.4 KHz)
2.4 KHz (-3 dB)
3.6 KHz (-60 dB)
CW (BW: 500 Hz)
500 Hz (-3 dB)
700 Hz (-60 dB)
Image rejection:
70 dB
AF output power / speaker:
2.6 W at 10% distortion / 8 ohm
External speaker connector:
3.5 mm, 8 ohm
TRANSMITTER SECTION
RF output power:

Pwr
AM:
5-50 W
FM:
5-200 W
SSB (PEP):
5-200 W
CW:
5-200 W
RTTY:
5-200 W
PSK31:
5-200 W
Modulation system:
AM: Digital low power modulation
FM: Digital phase modulation
SSB: D.S.P.N. modulation
Max FM deviation (Factory set):
±? KHz
Spurious emissions:
HF: Better than -60 dB
6 m: Better than -70 dB
Microphone impedance / connector:
600 ohm / 8-pin (Metal locking ring connector)
