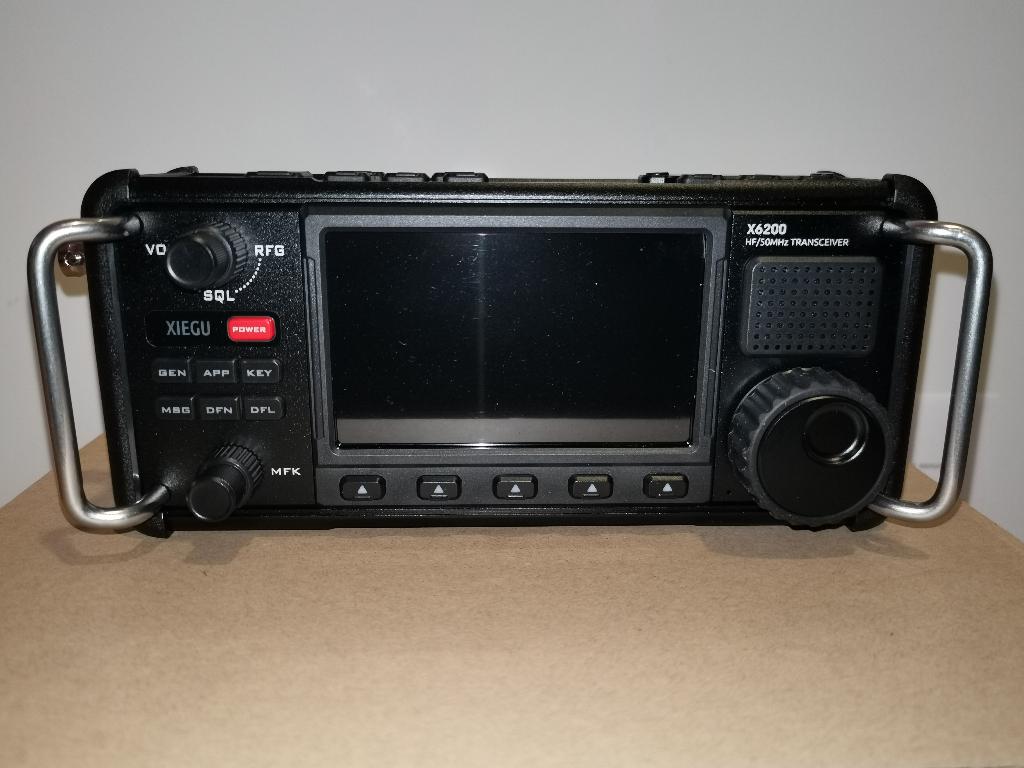

nieuwe X6200 van Xiegu
1 Jaar garantie service ( + 18 maanden totaal )
Direct Conversie SDR
High Quality SDR transceiver
All Mode
ingebouwde Accu

Type:
Amateur HF/VHF transceiver
Frequency range:
TX: 10-160 m + WARC and 60 m / 6 m
RX: 0.5-30 / 50-54 MHz / 88-108 / 108-136 MHz
Tuning steps:
Down to 1 Hz
Frequency stability:
±1 ppm @ 0-50°C (32-122°F), 20 minutes after power on
Mode:
TX: AM / FM / SSB / CW / RTTY
RX: AM / FM / WFM / SSB / CW / RTTY
Channels / memory management:
? regular
Repeater shift / offset:
Power supply:
7.4 VDC (Li-Ion battery pack)
or 9-15 VDC external
Current drain / power consumption:
RX: Max 650 mA
TX: Max 3.5 A
Antenna impedance / connector:
50 ohm / BNC
(20-175 ohm with ATU on)
Dimensions (W*H*D):
200*89*51 mm (7.87*3.5*2")
Weight:
880 g (1.94 lb)
Other features:
4" color TFT (800*480 pixels) with spectrum/waterfall. Voice and CW memory
keyers. Built-in auto-ATU. SWR scanner. Built-in sound card. USB connectivity.
WLAN and Bluetooth. Wireless FT8 operation. DRFS platform.
RECEIVER SECTION
Receiver system:
SDR Direct sampling
Sensitivity:
AM (10 dB S/N, preamp on)
0.55-1.79 MHz: 10 uV
1.8-28 MHz: 2 uV
28-30 MHz: 2 uV
50-54 MHz: 2 uV
108-136 MHz: <10 uV
FM (12 dB SINAD, preamp on)
1.8-28 MHz: 0.2 uV
28-30 MHz: 0.2 uV
50-54 MHz: 0.2 uV
SSB/CW (10 dB S/N, preamp on)
1.8-28 MHz: 0.2 uV
28-30 MHz: 0.2 uV
50-54 MHz: 0.2 uV
WFM (12 dB SINAD)
88-108 MHz: <5 uV
Selectivity:
Image rejection:
AF output power / speaker:
500 mW at 10% distortion / 4 ohm
External speaker connector:
TRANSMITTER SECTION
RF output power:

Max Pwr
@ BatteryMax Pwr
@ 13.8V
AM:
1.5 W
2.5 W
FM:
5 W
8 W
SSB (PEP):
5 W
8 W
CW/RTTY:
5 W
8 W
Modulation system:
AM: Low level
FM: Variable reactance
SSB: Balanced
Max FM deviation (Factory set):
±5 KHz
Spurious emissions:
Better than -60 dB
Microphone impedance/connector:
200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (RJ45 / Modular)
Microphone input level:
? mV
