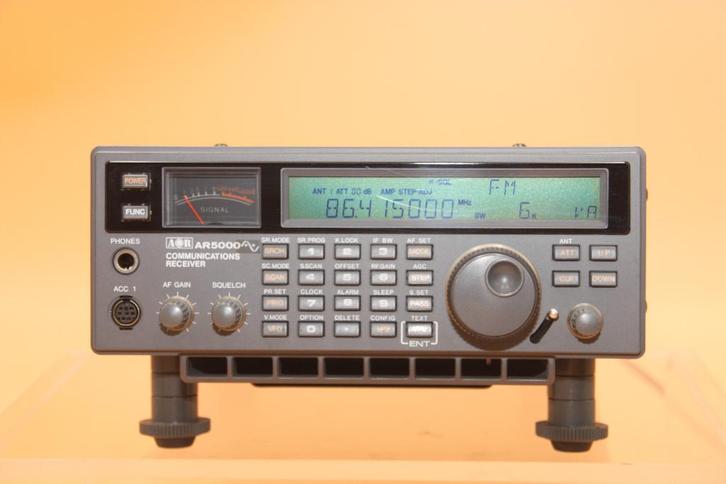

AOR AR-5000 HF/VHF/UHF receiver
Frequency range:
0.01-2600 MHz (Cellular blocked in the USA)
Tuning steps:
1 / 10 / 50 / 100 / 500 Hz
1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 30 / 50 / 100 / 500 KHz
1 MHz
Custom step: Any between 1 Hz to 999.999999 KHz
Frequency stability:
Less than 2 ppm in the first hour after cold start
Less than 0.1 ppm thereafter ppm
Mode:
AM / FM / WFM / SSB / CW
Channels / memory management:
1000 regular with alpha tags in 10 banks @ 25 or 45 channels per second
2100 pass
1 priority
Non-volatile EEPROM storage
There is actually a supercap inside, but it's the clock backup (Up to 50 hours without external power)
Power supply:
12-16 VDC (3-pin connector)
Current drain / power consumption:
Max 1 A
Antenna impedance / connector:
50 ohm / One N-jack and one SO-239, switchable
NB! Max recommended input signal level without damage is +17 dBm
Dimensions (W*H*D):
217*100*260 mm (8.54*3.94*10.24")
Weight:
3.5 Kg (7.72 lb)
Other features:
Five VFO's. Sleep timer. 10.7 MHz IF output. RS232C. DTMF decoder.
10 MHz reference input. Discriminator output.
RECEIVER SECTION
Receiver system:
Triple conversion superheterodyne
1st IF: 622 MHz
2nd IF: 10.7 MHz
3rd IF: 455 KHz
Sensitivity:
AM (10 dB S/N)
10-40 KHz: 63 uV
40-100 KHz: 4.5 uV
0.1-2 MHz: 2.3 uV
2-40 MHz: 1.25 uV
40-2600 MHz: 0.63 uV
FM (12 dB SINAD)
2-40 MHz: 0.56 uV
40-1000 MHz: 0.4 uV
1000-2600 MHz: 0.36 uV
WFM (12 dB SINAD)
2-40 MHz: 1.6 uV
40-1000 MHz: 1.25 uV
1000-2600 MHz: 0.9 uV
SSB/CW (10 dB S/N)
10-40 KHz: 17.7 uV
40-100 KHz: 1.25 uV
0.1-40 MHz: 0.4 uV
40-2600 MHz: 0.3 uV
Squelch sensitivity:
Noise figure:
Selectivity:
Selectable bandwidths: 3 / 6 / 15 / 30 / 110 & 220 KHz
