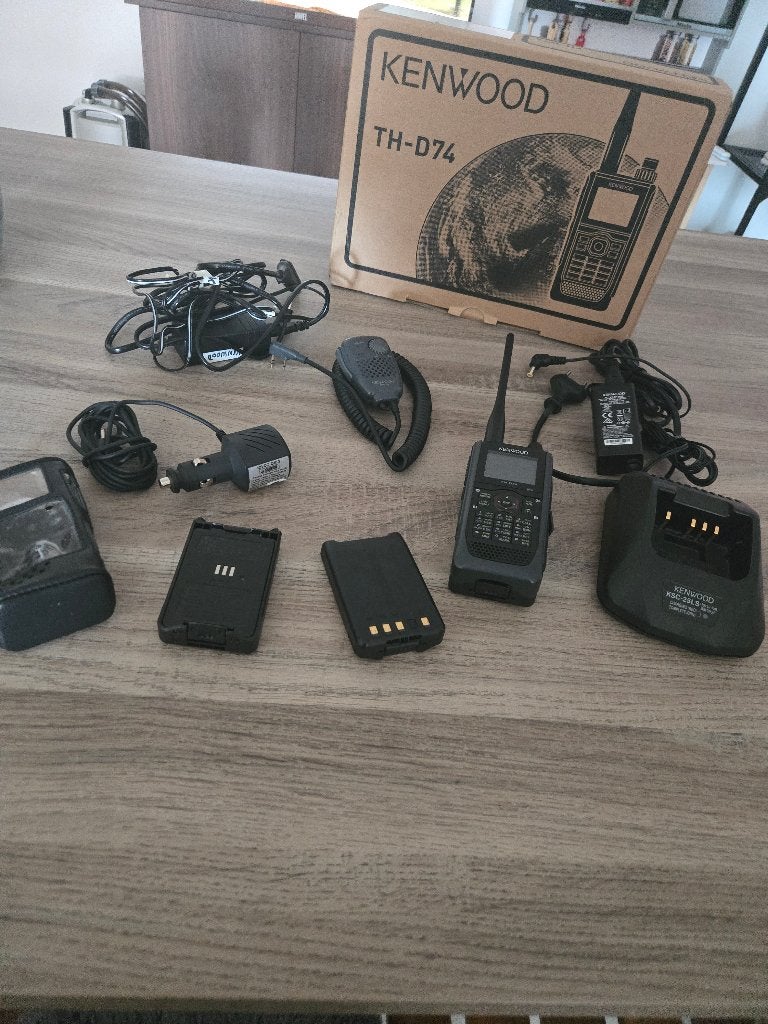

Kenwood TH-D74
met
spreeksleutel
3 batteryen 1 van voor 3a batteryen
draagtas
2 thuisladers
1laadstation
12v autolader

Afhalen meerhout (belgie)
of verzending

type:
Amateur VHF/UHF transceiver
Frequency range:
Europe
TX: 144-146 / 430-440 MHz
RX: 0.1-524 MHz
Tuning steps:
Standard steps: 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz
Fine tuning: 20 / 100 / 500 / 1000 Hz (Band B, AM/SSB/CW only)
Frequency stability:
±2 ppm @ -10 to +50°C (14 to 122°F)
Mode:
TX: FM / NFM / DV (D-Star)
RX: AM / FM / NFM / WFM / SSB / CW / DV (D-Star)
Channels / memory management:
1000 regular in 30 groups with alpha tags
100 program scan
1 priority
Non-volatile storage
Repeater shift / offset:
±0 to 29.95 MHz in 50 KHz steps
Power supply:
6-9.6 VDC (Battery pack) or 11-15.9 VDC (external)
Current drain / power consumption:
RX: 48-310 mA (GPS on adds an extra 115 mA)
TX: 0.4-2 A
Antenna impedance / connector:
50 ohm / SMA
Dimensions (W*H*D):
56*120*34 mm (2.2*4.72*1.34"), with KNB-75L
Weight:
345 g (12.17 oz), with KNB-75L, antenna and belt clip
Other features:
CTCSS/PL. DCS. Micro-SD card. Micro-USB. Built-in GPS and APRS.
Built-in bar entenna for 0.1-10 MHz RX. Color TFT. Audio equalizer.
Hi-performance DSP. Clock. Bluetooth class 2. Backlit keyboard.
RECEIVER SECTION
Receiver system:
IF-matrix
Sensitivity:
AM (10 dB S/N)
0.3-0.52 MHz: 4 uV
0.52-1.8 MHz: 1.59 uV
1.8-54 MHz: 0.63 uV
54-76 MHz: 1.12 uV
118-174 MHz: 0.5 uV
200-250 MHz: 0.63 uV
382-412 MHz: 1.12 uV
415-524 MHz: 1.12 uV
FM (12 dB SINAD)
28-54 MHz: 0.32 uV
54-76 MHz: 0.56 uV
118-144 MHz: 0.36 uV
144-148 MHz: 0.18 uV (Band A), 0.19 uV (Band B)
148-175 MHz: 0.36 uV
200-222 MHz: 0.36 uV
225-250 MHz: 0.36 uV
382-400 MHz: 0.5 uV
400-412 MHz: 0.36 uV
415-430 MHz: 0.36 uV
430-450 MHz: 0.18 uV (Band A), 0.2 uV (Band B)
450-490 MHz: 0.36 uV
490-524 MHz: 0.63 uV
NFM (12 dB SINAD)
144-148 MHz: 0.22 uV (Band A), 0.24 uV (Band B)
430-450 MHz: 0.22 uV (Band A), 0.25 uV (Band B)
WFM (12 dB SINAD)
76-95 MHz: 1.59 uV
95-108 MHz: 2 uV
SSB (10 dB S/N)
1.8-54 MHz: 0.4 uV
54-76 MHz: 0.79 uV
144-148 MHz: 0.16 uV
222-225 MHz: 0.2 uV
430-450 MHz: 0.16 uV
DV (PN9/GMSK, 4.8 kbps, BER 1%)
144-148 MHz: 0.2 uV
430-450 MHz: 0.2 uV
Selectivity:
FM: 12 KHz (-6 dB)
30 KHz (-50 dB)
Image rejection:
AF output power / speaker:
400 mW at 10% distortion / 8 ohm
External speaker connector:
TRANSMITTER SECTION
RF output power:

HighMidLowELow
2 m:
5 W
2 W
500 mW
50 mW
70 cm:
5 W
2 W
500 mW
50 mW
Modulation system:
FM: Reactance modulation
DV: GMSK reactance modulation
Max FM deviation (Factory set):
FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions:
Better than -60 dBc @ Hi/Mid settings
