Specifications: Frequency : 1.8 - 30 MHz - (10 - 160 meter) Input power : 1 - 10 W AM - FM : 1 - 15 W SSB - CW Output power : 150 W Max AM-FM : 250 W Max SSB-CW Input SWR : 1.1/1.5 Antenna SWR Max : 2.5 Mode : All Modes Fuse : 2 x 12 A Power Supply requirements Voltage : 13 VDC ± 1 V Current : 24 A. Max Input

is geschikt voor alle korte golf bande, ook voor 27 mc.
Opsturen of ophalen.

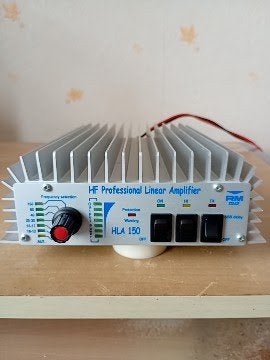

DESCRIPTION The HLA 150 Linear Amplifier will meet the need for increased operating power with low power QRP radios like the YAESU FT817 and ICOM IC703, etc. It is designed keeping in mind the need for attenuation of the unwanted harmonic signals in the outputs. The amplifier works on Amateur-Radio HF BANDS, 160 to 10 meters, in all modes. It features six LOWPASS FILTERS with 3 - 4 - 5 - 8 - 15 -22 - 31 MHz cut off frequencies, to drastically reduce harmonic output power. Control of the filter selection can be either AUTOMATIC or MANUAL. AUTOMATIC - (Aut. on switch 1), is controlled by means of a microprocessor that reads the transmission frequency and automatically selects the correct filter. MANUAL - the band is selected by the position of switch 1. If the microprocessor detects the incorrect
