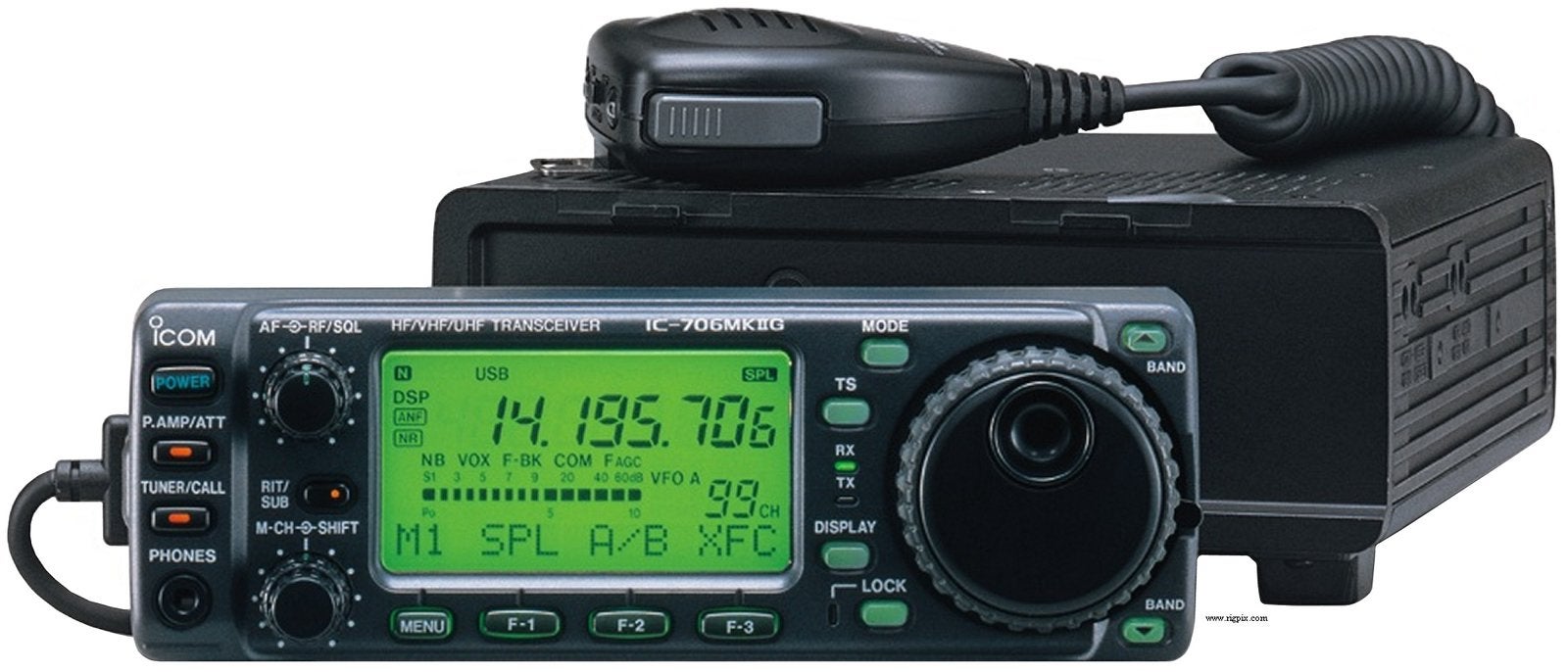

ICOM IC 706 MK2G
Multieband transceiver
Doorlopend inclusief 11 meter
Met manual
Voedingskabel / filter
Orgineel microfoon

Testen geen bezwaar
Afhalen in Leiden
Prijs €475

SPECIFICATIONS

GENERAL
Type: Amateur HF/VHF/UHF transceiver
Frequency range: Europe
TX: 10-160 m + WARC / 50-54 / 144-146 / 430-440 MHz
RX: 0.03-200 / 400-470 MHz
USA
TX: 10-160 m + WARC / 50-54 / 144-148 / 430-450 MHz
RX: 0.03-200 / 400-470 MHz
Tuning steps: 1 / 10 / 100 Hz, 1 / 5 / 9 / 10 / 12.5 / 15 / 20 / 100 KHz
Frequency stability: Less than ±5 ppm @ 0 to 50°C (32 to 122°F)
Mode: TX: AM / FM / NFM / SSB / CW / RTTY
RX: AM / FM / NFM / WFM / SSB / CW / RTTY
Channels / memory management: 99 regular with alpha tags (9 characters)
6 scan edges
2 call
Non-volatile EEPROM storage
Repeater shift / offset: Programmable
Power supply: 13.8 VDC ±15%
Current drain / power consumption: RX: 1.8 to 2.0 A
TX: Max 20 A
Antenna impedance / connector: HF/6 m: 50 ohm / SO-239
2 m/70 cm: 50 ohm / SO-239
Dimensions (W*H*D): 167*58*200 mm (6.58*2.28*7.87")
Weight: 2.45 Kg (5.4 lb)
Other features: CTCSS/PL with tone scan. CI-V. Electronic keyer. SWR-meter. 1750 Hz tone call.
NB. IF-Shift. Simple band-scope. VOX. Detachable front panel.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne (AM/WFM/SSB/CW/RTTY)
1st IF: 69.01 MHz (AM/SSB/CW/RTTY), 70.7 MHz (WFM)
2nd IF: 9.01 MHz
Triple conversion superheterodyne (FM/NFM)
1st IF: 69.01 MHz
2nd IF: 9.01 MHz
3rd IF: 455 KHz
Sensitivity: AM (10 dB S/N)
0.5-1.8 MHz: 13 uV
1.8-29.7 MHz: 2 uV
50-54 MHz: 1 uV
144-148 MHz: 1 uV
430-440 MHz: 1 uV
FM (12 dB SINAD)
28-29.7 MHz: 0.5 uV
144-148 MHz: 0.18 uV
430-440 MHz: 0.18 uV
WFM (12 dB SINAD)
76-108 MHz: 10 uV
SSB/CW (10 dB S/N)
1.8-29.7 MHz: 0.15 uV
50-54 MHz: 0.12 uV
144-148 MHz: 0.11 uV
430-440 MHz: 0.11 uV
Selectivity: AM/NFM
8 KHz (-6 dB)
30 KHz (-40 dB)
FM
12 KHz (-6 dB)
30 KHz (-60 dB)
SSB/CW/RTTY
3 KHz (-6 dB)
4.8 KHz (-60 dB)
Image rejection: HF: >70 dB
6 m: 65 dB
2 m/70 cm: 65 dB
AF output power / speaker: 2 W at 10% distortion / 8 ohm
External speaker connector: 3.5 mm, 8 ohm




TRANSMITTER SECTION
RF output power:

HF 6 m 2 m 70 cm
AM: 2-40 W 2-40 W 2-20 W 2-8 W
FM: 5-100 W 5-100 W 5-50 W 2-20 W
SSB (PEP): 5-100 W 5-100 W 5-50 W 2-20 W
CW: 5-100 W 5-100 W 5-50 W 2-20 W
Modulation system: AM: Low level modulation
FM: Variable reactance modulation
SSB: Balanced modulation
Max FM deviation (Factory set): FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions: Better than -60 dB
Microphone impedance / connector: 600 ohm / 8-pin (Modular)
