Kenmerken
Conditie
Zo goed als nieuw
Type
Zender
Beschrijving

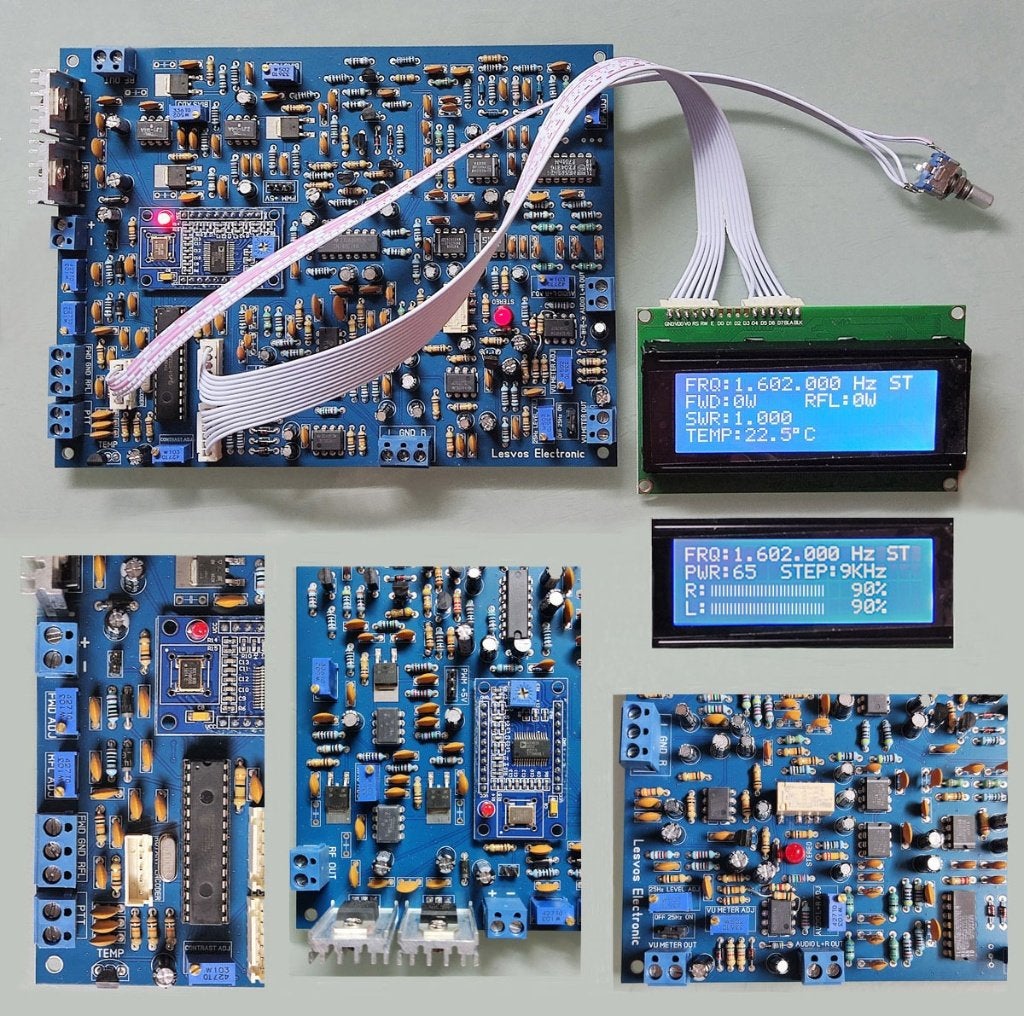

De bekende stuurzender print van Lesvos Electronic. Wordt geleverd zoals op de eerste foto. De andere foto is een testopstelling zodat je kunt zien dat het werkt. Een leuke stuurzender om mee te starten met LPAM.
------------------------------------------------------------------------
DDS Technology
DDS Signal Generator with Microcontroller for 25Hz
With the Rotary Encoder you can adjust the Frequency, the Frequency Step, the Power, select Mono or Stereo and set the protection limits for Temperature and SWR.
Measures Power and SWR using an external coupler, temperature and at the same time shows the audio level with a bar graph.
All inputs are adjustable (except temperature).
Possibility of connecting an external coupler for the Power and SWR measurements. Measures up to 5000 Watts
Has protections for SWR and Temperature
PTT for On - Off the RF Power
Adjustable output for VU-Meter
Adjustable Audio L+R output
Frequency Step: 1 - 9 - 10 - 100 KHZ
Frequency Range: 522 to 1998 KHz
RF Output Impedance: 50 Ohm
RF Output Power: 0 to 5 Watt PEP Adjustable
Push-Pull Class AB Output Amplifier
Modulation Type: AM C-QUAM Stereo System
Maximum Modulation Level: 100%
Audio Frequency Response: 50 Hz to 15 KHz
Audio Input Sensitivity: 500 mVolt for 100% Modulation
Operating Voltage 15V
------------------------------------------------------------------------
DDS Technology
DDS Signal Generator with Microcontroller for 25Hz
With the Rotary Encoder you can adjust the Frequency, the Frequency Step, the Power, select Mono or Stereo and set the protection limits for Temperature and SWR.
Measures Power and SWR using an external coupler, temperature and at the same time shows the audio level with a bar graph.
All inputs are adjustable (except temperature).
Possibility of connecting an external coupler for the Power and SWR measurements. Measures up to 5000 Watts
Has protections for SWR and Temperature
PTT for On - Off the RF Power
Adjustable output for VU-Meter
Adjustable Audio L+R output
Frequency Step: 1 - 9 - 10 - 100 KHZ
Frequency Range: 522 to 1998 KHz
RF Output Impedance: 50 Ohm
RF Output Power: 0 to 5 Watt PEP Adjustable
Push-Pull Class AB Output Amplifier
Modulation Type: AM C-QUAM Stereo System
Maximum Modulation Level: 100%
Audio Frequency Response: 50 Hz to 15 KHz
Audio Input Sensitivity: 500 mVolt for 100% Modulation
Operating Voltage 15V
...
...
...
...
...
...
...
...
...
...
...
...
