Hydac HMG 4000 data logger + various pressure sensors

Good condition with various sensors available. We used the power cable with our lab power supply and stripped contacts, but a replacement can be arranged. Price is for main unit.

1x Hydac HMG 4000
2x NEW Hydac ETS 4148-H-006-000
3x NEW Hydac HDA 4748-H-0009-000
4x USED Hydac HDA 4748-H-0009-000
4x USED Hydac HDA 4748-H-0016-000
2x USED Variohm EPTTE3100-C-01600-B-4-A

6x NEW Sensor cable 5 meter
5x USED Sensor cable 5 meter
4x USED Sensor cable 2 meter

Price is exclusive of 21% VAT.

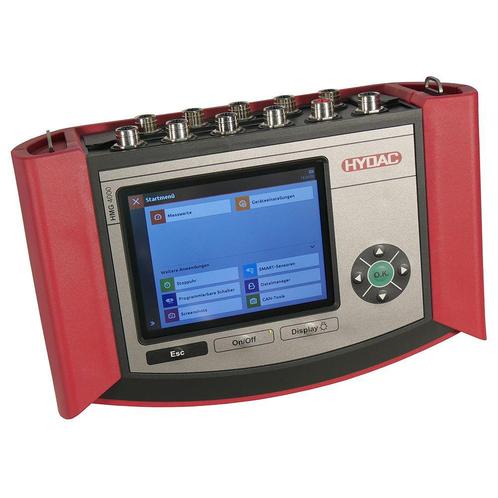

The HMG 4000 hand–held measuring unit is a portable measuring and data logging device.

HYDAC mainly developed this tool for all values measured in relation to hydraulic systems, such as pressure, temperature, flow rate and position. Moreover, it provides a very high flexibility, even when it comes to evaluating other measuring values. Also, the main applications are servicing, maintenance or test rigs.

What's more, the HMG 4000 has a very easy-to-operate user interface due to its large 5.7" touchscreen. Indeed, the operator can access all of the unit's functions and settings by means of clearly presented selection menus.

Furthermore, the HMG 4000 can record the signals of up to 38 sensors at once. It is also possible as an option to connect the HMG 4000 to an existing CAN network. This enables the recording of measured data transmitted via CAN bus (e.g. motor speed, motor pressure) in combination with the measured data from the hydraulic system.

However, the most impressing feature of the HMG 4000 is its ability to record the dynamic processes of a machine in the form of a measurement curve and render them as a graph — and, moreover, online and in real time.

HYDAC software HMGWIN which is specific to the HMG 4000, is supplied for convenient post-processing, rendering and evaluation of measurements on your computer.

Features:

A large, full graphics colour display 5.7" touch screen
Capable of recording up to 38 sensors at once, 8 analogue, 2 digital sensors and 28 HSCI sensors via CAN bus.
Up to 100 measurement channels can be depicted simultaneously
A high-speed measuring rate, up to 8 sensors at 0.1 ms at a time.
A rapid and automatic basic setting of the device by means of automatic sensor detection
Analogue inputs 0.. 20 mA, 4 .. 20 mA Voltage 0 .. 50V, -10 .. 10 V
PT 100/1000 input
Connection to a CAN bus system (also J1939)
A simple and user-friendly operation, intuitive menu
A practical, robust design
A very large data memory for archiving measurement curves. Enables the storage of 500 measurements with up to 8 Million measured values
Various measurement modes
The recording of dynamic processes "online" in real time
Event-driven measurements with several triggering options
A programming function for HYDAC switch devices
A PC interface via USB
Also, a USB Host connection for USB memory sticks
Convenient visualisation, archiving and data processing using the HMGWIN software
