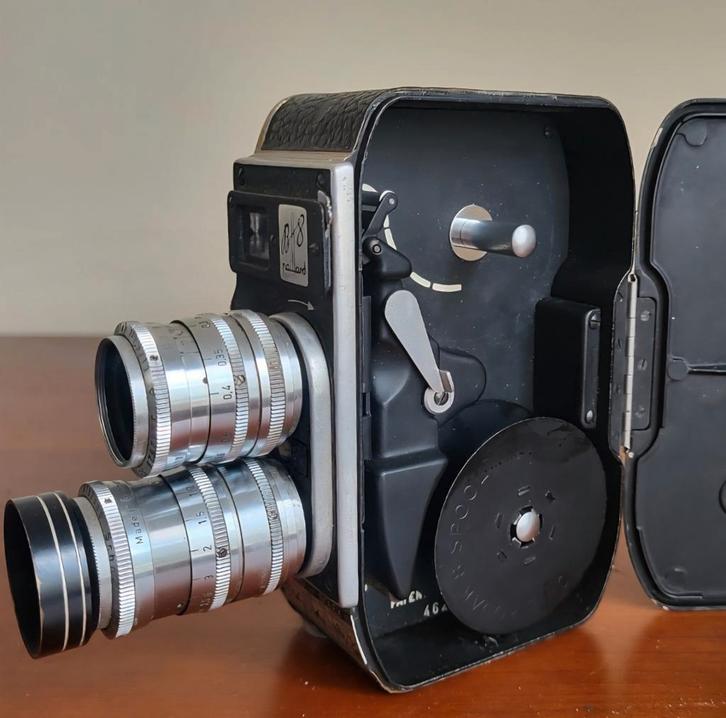

: Paillard Bolex B-8 double-8 camera. build in 1956
8mm Camera

1953

OVERALL DIMENSIONS: 5" x 3 1/2" x 2"

WEIGHT: Approximately 28 oz.

OUTER CASE: Highly polished duraluminium body, covered in genuine Morocco leather. Metal parts are chrome-plated.

FILM CAPACITY: 25ft daylight loading spools of double run 8mm film. When a roll runs through the camera, only half the width of film is exposed. The spool is then reversed and run through again, exposing the other half. When processed, film is split and spliced together giving 50' for projection. Projection time at 16 fps for 25' roll is 4 minutes.

THREADING: manual, with no loop forming; with the pressure pad opened the film is simply placed over a guide roller, threaded behind the gate, over the bottom guide roller and onto the takeup spool.

MOTOR: Constant speed, spring motor mechanism; governor controlled. Generous winding key, attached to the camera, folds back against its side when not in use. Spring cannot be over-wound.

TURRET: Accommodates two standard D mount lenses.
