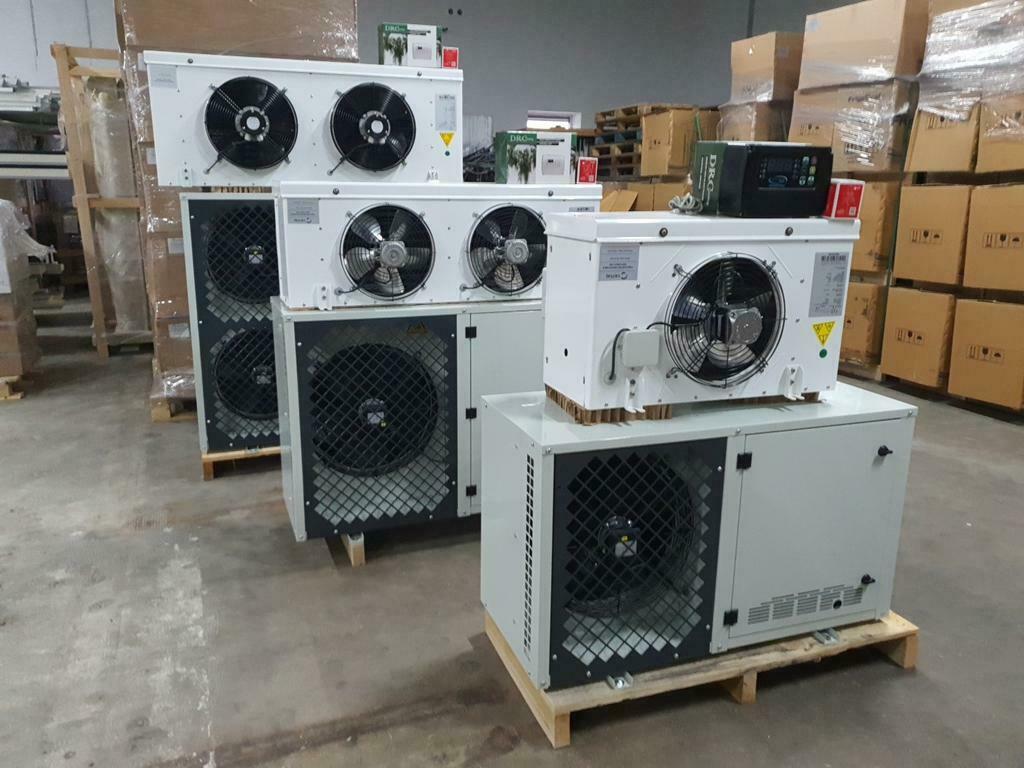

Koelmotor, Vriesmotor, Stille motor, Koelcel, Vriescel,

Stille Koelmotor
Tecumseh TFH2511z
Tecumseh CAJ2464z
Tecumseh TFH4531Z
Tecumseh CAJ4517Z

Energy Efficiency (COP) 1,95
Sound Level 31,08 dBA/10m
Liquid Line 3/8"
Suction Line 3/4"
Compressor Power Sup. (V / Ph / Hz)
220 - 230 / 1 /
Discharge line (Ø inches) 1/2"
Suction line (Ø inches) 3/4"
Condenser and Fan Information
Condenser Model
WCK Condenser - 4-CHH-145
Capacity Watts Dt = 15 °C11.638
Condenser Fin Space (mm)2,10
Condenser Surface Area (m²)27,70
Air Flow (m3/h) 3.353
Fan Motor Brand Zıehl-Abegg
Fan Motor Model
Ziehl-Abegg S 450 CR46MG050W06A1 Rotation (RPM) 6 Poles (~900 RPM)
Fan Motor (Quantity x Diameter)1x450
Fan Motor Input Power (kW)1X0,174
Fan Motor Power Sup. (V / Ph / Hz)
220 - 230 / 1 / 50
Fluid Line
Liquid Tank
WCK 3lt 3/8" Receiver
Filter Dryers
Danfoss 023Z4562 DML 053S Dryer fillter 3/8" solde
Gas Sightglass
Danfoss 014-0182 SGN 10S - 3/8" Solder
Solenoid Valve
Danfoss 032F1204 EVR 3 Solenoid Valves 3/8"Solder.
Solenoid Valve Coil
Danfoss 018F6176 IP20 10W Bobin 220V50Hz
Controls Combined Pressure Control
Danfoss 060-1243 KP15 Pressostat Combine Man.Res.
Fan Control
Danfoss 060-1171 KP 5 Pressostat - Y. B. Otom Reset
