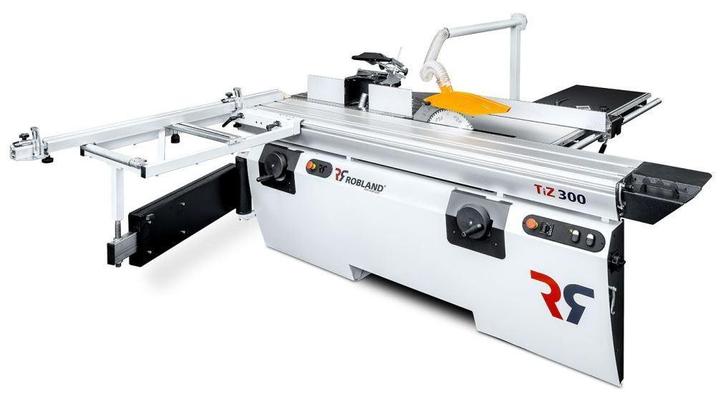

Robland TiZ300 Combinatiemachine

Robland TiZ300 combinatiemachine.

Algemeen

• Weight 740-840kg
• Voltage 230V Mono / 230V – 3 Phase / 400V – 3 Phase
• Dust suction outlet 2 x 100mm + 60mm on saw guard

Zaagas

• NEW welded steel saw aggregate,
• Max. saw blade (not incl.): 315mm
• Cutting depth with single speed motor @90°: 100mm, @45°: 70mm
• Saw rotation speed: 4000 RPM
• Motorized scoring unit (blade not supplied).
• Cutting capacity Z3 parallel fence : 700mm
• Anodized Z3 sliding table dimensions: 355mm × 2200mm
• Cutting length: 2500mm
• Z3 Outrigger table (970mm x 540mm) on telescopic arm, swiveling Z3 fence with degree scale and two flippers.

Frees as:

• NEW Tilttable (0°-45°) spindle with diameter of 30mm.
• High-end spindle fence with easy repositioning (“12TOPKAP”).
• Maximum tool diameter: 180mm
• Spindle rotational speed: 3000 / 6000 / 7500 / 10.000RPM
• Manual rise/fall and tilting of saw blade and spindle with analogue read out of tilting.
• Electronic brake standard.
