CALIFORNIA 4 Axis CNC Profile Machining Center

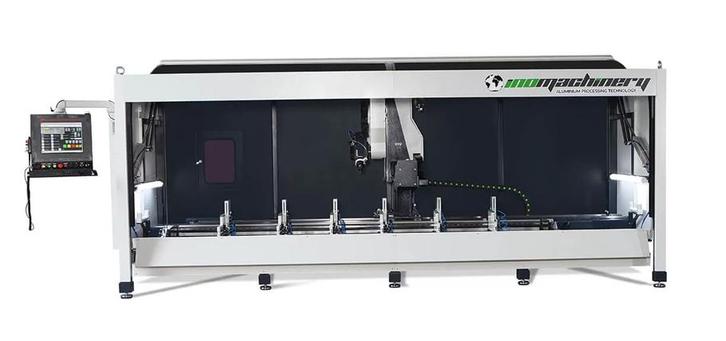

It is a CNC profile machining center with compact design Cabinet moving on X-Y-Z-A axes. The spindle unit is positioned and machining independently at any degrees from 0 to 180.
This is the fourth axis feature. It can process all kinds of profiles such as PVC, iron, steel, copper, especially aluminum.
Different types of milling bits are used according to the hardness of the alloy it processes.
It works freely on aluminum profiles with its fast milling head moving on the steel body equipped with CNC control unit and servo motor and 7-position tool changing magazine.The CADCAM software is a customized tool for “ino machinery” profile machining centers. The pneumatic reference point at the head of the machine is automatically removed and determines the zero point of the profiles.Profile clamping pneumatic clamps are offered as standard in the machine in 6 pieces.
The locations of the clamps can be determined from the profile processing software screen, as well as the vise system with automatic positioning offered as an option, and the clamps can be positioned by the processing bridge.
The protection cover in front of the cab closes while the profiles are processed, and when the process is finished, it opens automatically and informs the operator.

Machine Dimensions
Net dimensions: 5.833 X 1.820 X 2.228 mm.
Packing dimensions: 5.930 X 2.000 X 2.300 mm.
Machine weight: 3.050 Kgs.

Spindles
The standard air cooling spindle has a power of 7,5 kW 24.000 rpm ISO 30 tooling and an automatic tool changer magazine of 7 positions. Thanks to the frequency inverter, it is possible to adjust the rpm between 0 to 24.000. Optionally a liquid cooling spindle with 10,0 kW 24.000 rpm HSK F-63 tooling is also possible.

Tool Changer Magazine
It is a 7-way “Linear Type” magazine located on the head of the machine. The tools are positioned side by side. 6 milling tools and one disc milling can be connected. The top of the magazine is sealed with a protective cover, made from pneumatic moving fiber material. The role of this cover is to protect the tools from swarf. Thanks to the plex-coated cover just behind the magazine, it is easy to reach the tools and replace the clamps and tips attached to them. Optionally, the 13 magazine can be preferred, with 12 trimming tools and one disc trimming.

Axis features
The X-axis is driven by the Servo Motor and Planet reducer on the cramel outer, pinion and linear rails.
Axis speed 70 m./min.
The Y-axis is moving on the cramel outer, pinion and linear rails with the help of Servo Motor and Planet reducer.
Axis speed 65 m./min.
The Z-axis is driven by a 1/1 reduction coupling on the 20-stroke 20-screw shaft.
Axis speed 25 m./min.
The a-Axis rotates with a 1:120-hole Harmonic reducer.

Standard Equipment
Two pneumatic reference points.
Pneumatic vise group with manual positioning.
7.5 kw 24,000 rpm ISO 30 spindle and 7-pack tool changeover magazine.
Automatic moving machine cover.
Spray lubrication device.
Lubrication of axis bearings.
3D CAD-CAM Profile Processing Software Uni_Link.
19″ Touch screen Intel PC + licensed Windows 11.
