Bouwjaar: 2021. The Doosan DX190W-5 is a 20.5 tonne wheeled excavator powered by a 125–129 kW (167–174 hp) Doosan DL06P Tier 4 final engine. It offers a maximum digging depth of 5.7–5.9 m, a breakout force...

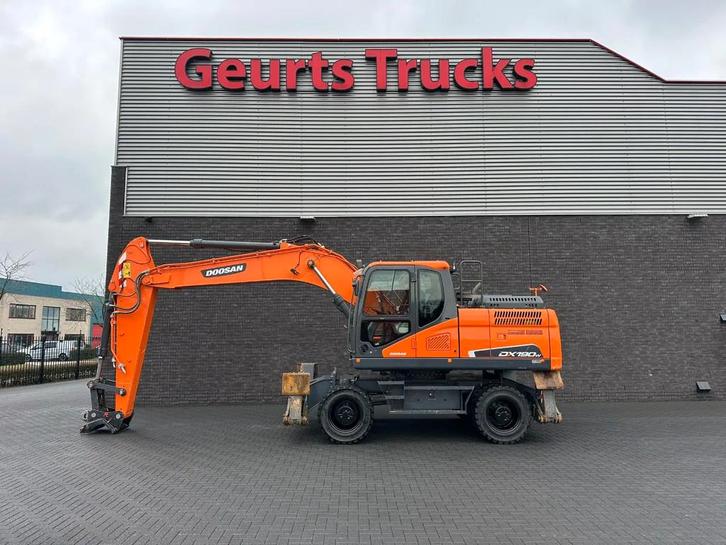

Doosan DX190W-5

Algemene informatie
Type: Wielgraafmachine
Constructiejaar: 2021
Bedrijfsuren: 6.840
Referentienummer: 1790635
Kenteken: TJN-48-P

Technische informatie
Vermogen: 127 kW (173 PK)
Aantal cilinders: 6
Brandstofsoort: Diesel
Aandrijving: Wiel
Ledig gewicht: 20.500 kg

Functioneel
CE markering: ja

Staat
Algemene staat: zeer goed
Technische staat: zeer goed
Optische staat: zeer goed

The Doosan DX190W-5 is a 20.5 tonne wheeled excavator powered by a 125–129 kW (167–174 hp) Doosan DL06P Tier 4 final engine. It offers a maximum digging depth of 5.7–5.9 m, a breakout force of 130.5 kN, and a travel speed up to 35-36 km/h, designed for high stability with a 3-ton counterweight.
Key Specifications
Operating Weight: 20,500 kg
Engine: Doosan DL06P 6-cylinder diesel (125 kW / 173.5 hp)
Bucket Capacity: 0.76 – 0.93
Maximum Digging Depth: ~5.72 – 5.95 m
Maximum Digging Reach: ~9.05 – 9.56 m
Travel Speed: 35 – 36 km/h
Dimensions (L/W/H): ~8.75 m x 2.53 m x 3.13 m
Max Torque: 755 Nm @ 1400 rpm
Performance & Features
Stability: Features a 3-ton counterweight and a 2700 mm wheelbase.
Hydraulics: Designed for high efficiency with improved fuel consumption.
Comfort/Safety: Equipped with a ROPS/FOPS cabin.
Structure: Reinforced boom and arm for increased durability.
