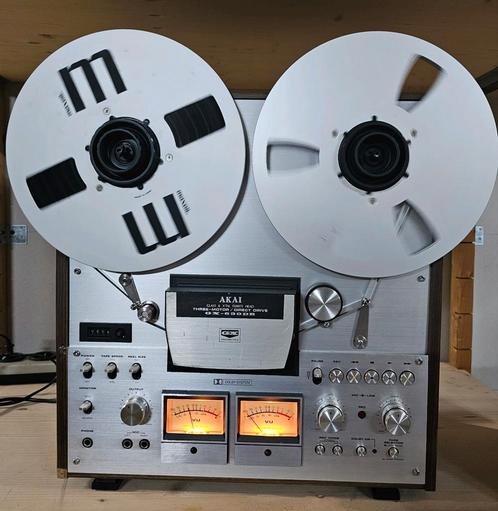

AKAI GX-630 DB vers geserviced, prima staat, garantie

Model: GX-630 DB
Years of manufacture: 1976 - 1978
Made in: Japan
Color: silver / walnut cabinet
Remote control only as accessories: yes (cable remote control RC-17 or RC-18)
Power consumption: approx. 100 W
Dimensions: 440 x 465 x 240 mm (WxHxD)
Weight: 19,5 kg

Connections

Number of outputs: 3
DIN (0.5 V)
Line (0.775 V)
Headphones (30 mV, 8 Ohm)
Number of inputs: 2
Microphone (3 mV / 27 kOhm)
Radio (70 mV / 150 kOhm)
Line (70 mV / 150 kOhm)


Reserve (70 mV / 150 kOhm)


Technical Data


track position: 4-track stereo/mono
max. reel diameter: 26,5 cm
drive:
1 AC servo motor (tape drive).
2 eddy current motors (reel drive).
Heads:
1 GX pick-up head
1 GX playback head
1 erase head
Tape speeds: 9.5 and 19 cm/s
Synchronisation fluctuations:
at 9.5 cm/s: 0.05%
at 19 cm/s: 0.03% * overall frequency response
Overall frequency response:
at 9.5 cm/s: 20 - 20,000 Hz
at 19 cm/s : 16 - 25,000 Hz
Distortion factor: at 19 cm/s: < 0,7 (333 Hz)


Signal to noise ratio
>55 dB without Dolby
> 64 dB with Dolby crosstalk attenuation:


opposite direction double track recording, mono: > 55 dB (1 kHz)
opposite stereo mode: > 45 dB (1 kHz)
erasure attenuation: at 19 cm/sec: > 70 dB
Premagnetization and extinction frequency: 100 kHz ± 5%
Rewind time: 120 sec for 1100 m


Special Features


Dolby-B system, GX heads

Vers geserviced en afgeregeld door technicus

In prima staat te koop voor 599,- inclusief 3 maanden garantie

Adapters en tapes in overleg tegen meerprijs.

Meer foto's volgen

Vooraf uit te proberen

Opsturen en/of Paypal: Kosten en risico koper
