Kenmerken
Type
Versterker
Handelsnaam fabrikant
Tsakiridis
Postadres fabrikant
.
E-mailadres fabrikant
.

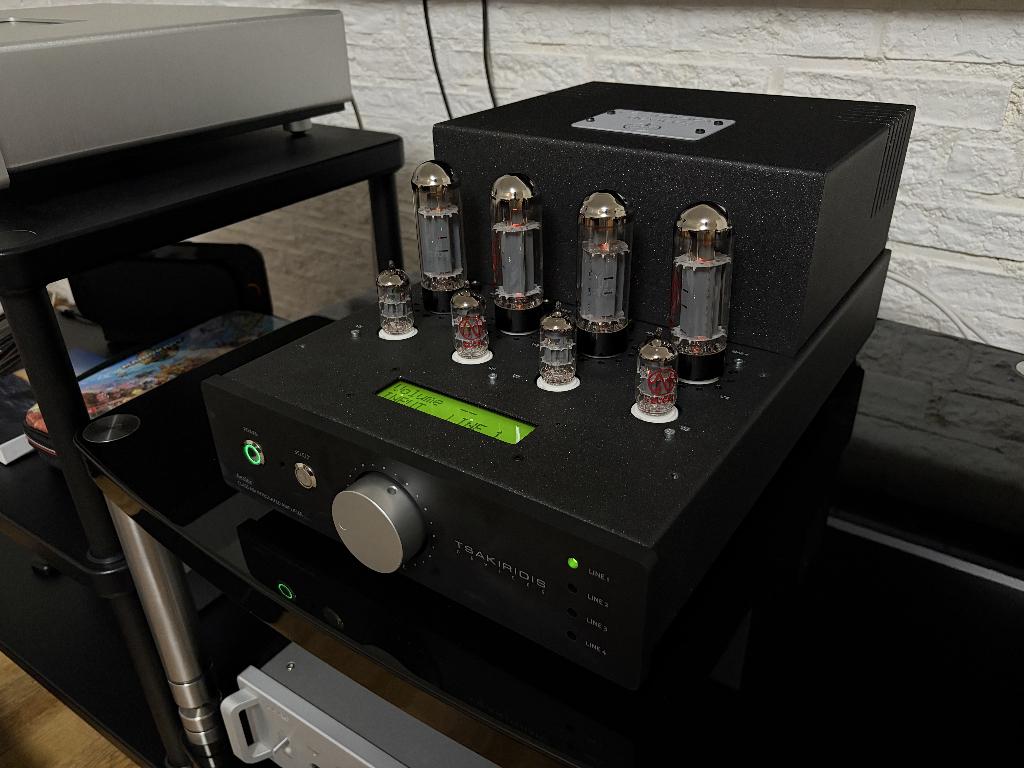

Beschrijving
We are the official distributor in Netherlands for Tsakiridis Devices.
NEW Product: Retail price: €1,986
Please, check out our Audio-Vault website for more information.
Features
Inputs: 4 line inputs
Outputs: 1 pre output
Input selection: High grade signal relays
Input/Output connectors: RCA gold plated
Speaker connectors: Ultimax
Remote control: Yes
Volume control: Blue Alps
Power supply capacitors: United Chemicon 105oC
Signal capacitors: Non inductive polypropelene film capacitors
Power resistors: Carbon film 5% tolerance
Low power resistors: Metal film 1% tolerance
Power transformer: Handmade 300W
Output transformer: Handmade 8 layer windings
Driving stage tubes: 4x12AT7
Power tubes: 4xEL34
Specifications
Output Power: 2x35W
Input impedance: 100 kOhm
Output impedance: 6 Ohm
Input sensitivity: 350mV
Signal to Noise Ratio (SNR): 85db
Channel separation: 68db
Rise time: 4us @ 10kHz
Harmonic distortion: 10W @ 1kHz 0.40%
Frequency response: -3db 15Hz-72000Hz
Power supply energy: 150Joule
Power consumption: 110W
Weight: 20kgr
Dimensions (WxDxH): (29x46x23)cm
NEW Product: Retail price: €1,986
Please, check out our Audio-Vault website for more information.
Features
Inputs: 4 line inputs
Outputs: 1 pre output
Input selection: High grade signal relays
Input/Output connectors: RCA gold plated
Speaker connectors: Ultimax
Remote control: Yes
Volume control: Blue Alps
Power supply capacitors: United Chemicon 105oC
Signal capacitors: Non inductive polypropelene film capacitors
Power resistors: Carbon film 5% tolerance
Low power resistors: Metal film 1% tolerance
Power transformer: Handmade 300W
Output transformer: Handmade 8 layer windings
Driving stage tubes: 4x12AT7
Power tubes: 4xEL34
Specifications
Output Power: 2x35W
Input impedance: 100 kOhm
Output impedance: 6 Ohm
Input sensitivity: 350mV
Signal to Noise Ratio (SNR): 85db
Channel separation: 68db
Rise time: 4us @ 10kHz
Harmonic distortion: 10W @ 1kHz 0.40%
Frequency response: -3db 15Hz-72000Hz
Power supply energy: 150Joule
Power consumption: 110W
Weight: 20kgr
Dimensions (WxDxH): (29x46x23)cm
...
...
...
...
...
...
...
...
...
...
...
...
