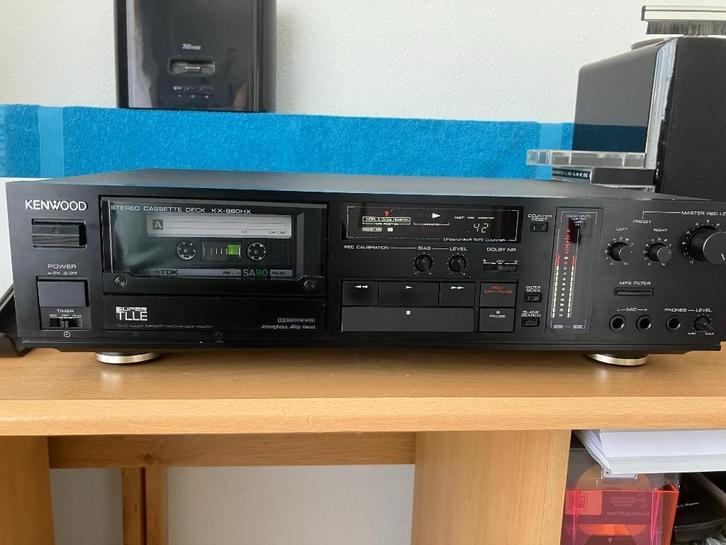

Kenwood KX-880HX voor de kenner een perfect cassette deck.
Goede werking van alle functies.
Werkend te testen.
Afhalen of verzenden.
Verzenden voor kosten en risico koper.
Tegen elk aannemelijk bod vanaf 145 euro.
Onzin biedingen worden verwijderd.
zie onder voor technische gegevens.

General

• Manufacturer: Kenwood
• Model: KX-880 HX
• Type: Compact Cassette Tape Deck
• Type: Front loader
• Year of manufacture: 1988 - 1989
• Remote control: no
• Color: Black
• Made in: Japan
• Dimensions (W x H x D): 440 x 109 x 322 mm
• Mass: 6.1 kg
• Original price approx.: 850 DM

Connections

• Signal inputs:
• Line In (RCA/Cinch R+L)
• Microphone (6.35 mm jack R+L, front)

• Signal outputs:
• Line Out (RCA/ RCA R+L)
• Headphones (6.35 mm jack) with level control

Data:

• Tone heads: 2 (A/W combination head: Amorphous Alloy, erase head: double gap ferrite).
• Motors: 3 (1 Capstan direct drive, 1 DC rotor each for winding disc and mechanics)
• Tape running speed: 4.75 cm/s
• Rewinding speed: 70 sec. (C 60)
• Variation in synchronism: 0.025% (WMRS) 0.075% (DIN)
• Tape types: IEC Type I / II / IV
• Frequency range:
• 20 - 18,000 Hz (I)

20 - 19,000 Hz (II) 20 - 22,000 Hz (IV) Distortion factor: 0.8% (0 dB VU, 1 kHz)

• Signal-to-noise ratio:
• 59 dB (without Dolby)

67 dB (Dolby B)

• 74 dB (Dolby C)

• Auto Reverse: No
• Noise Reduction Dolby B, C / Dynamic Expansion HX Pro
• MPX filter: Yes, switchable
• (when recording via timer, the MPX filter is automatically switched on)

• Pitch control: No

CD Synchro Recording: No

• Input Sensitivity/Impedance:
• Line In 77.5 mV at 50 ohms.
• Micro 0.3 mV at 600 ohms

Special Features

• 3 motors direct drive
• Programmable search functions (New DPSS) Re-Rec-Standby, Index Scan, Blank Search, Zero Stop, Auto Rec Mute, Single Program Repeat
• Real-time counter with DPSS function display (4-digit)
• Automatic tape type selection
• Constant current recording control (S-TLLE)
• High-resolution fluorescent display with peak hold function, two-color, calibrated from -36 dB to + 12 dB
• Double rated power supplies
• Bias control and recording reference levels
