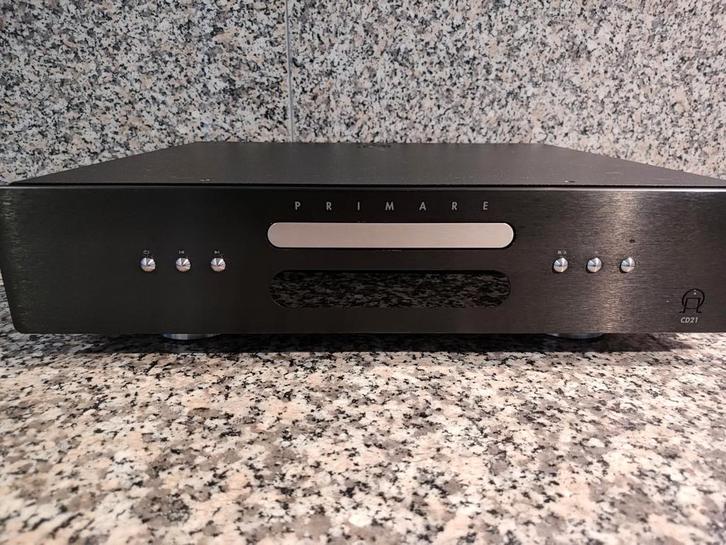

The Primare CD21 features a

DVS "Ultra Silent" mechanism, dual Burr-Brown PCM 1738 DACs, and an analog output of 2.0 VRMS. Its digital outputs include coaxial (SPDIF), AES/EBU, and TOSlink. The player has a frequency response of 20Hz – 20kHz (+0/0.2dB), a signal-to-noise ratio of 105dBA, and a harmonic distortion of less than 0.01%. It measures 430 x 385 x 100mm and weighs 10kg.

Specifications

Mechanism: DVS "Ultra Silent"

D/A Converter: 2 x Burr-Brown PCM 1738

Analog Output: 2.0 VRMS

Analog Output Impedance:



100Ω100 cap omega

100Ω

Frequency Response:



20Hz–20kHz20 cap H z – 20 k cap H z

20𝐻𝑧–20𝑘𝐻𝑧

(+0/0.2dB)

Signal to Noise Ratio:



105dBA105 d cap B cap A

105𝑑𝐵𝐴

Harmonic Distortion:



<0.01%is less than 0.01 %

<0.01%

(



20Hz–20kHz20 cap H z – 20 k cap H z

20𝐻𝑧–20𝑘𝐻𝑧

)

Digital Outputs:

Coaxial (SPDIF)



75Ω75 cap omega

75Ω

AES/EBU



110Ω110 cap omega

110Ω

TOSlink

Dimensions: $430 imes 385 imes 100$mm

Weight: 10kg

Power Consumption (Standby):



<16Wis less than 16 cap W

<16𝑊

Other Inputs: IR input ($3.5$mm), RS232

Finishes: Satin Black or Titanium
