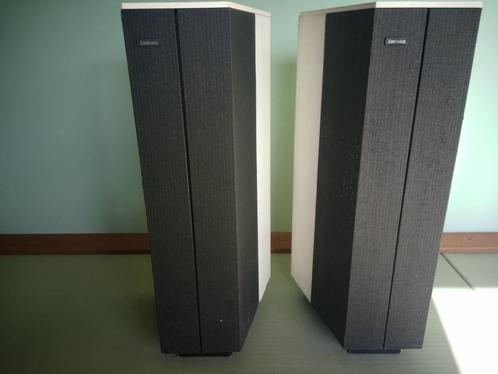

Vintage Goodmans Dimension 8 Speakers

Vintage Goodmans Dimension 8 Speakers – 8 active, 1 passive drivers per bi-directional speaker

bij de Bass speakers is de rand los !

The Goodmans Dimension 8's designers have taken a different approach to provide a large stereo listening area. The loudspeakers are intended to be placed parallel to a rear wall and a few feet from the side walls. The vertical panel of each enclosure which flanks the side wall will have its signal reflected forward into the listening area, whilst the panels in the center will aid the sound spread. The speaker gives an extremely satisfying sound picture due to the very wide high frequency dispersion angle, well in excess of 180 degrees at 10kHz.

Specifications :
System ...........................................Mass loaded reflex
Interior Volume.................................40 liters
Frequency Response.......................30 to 22,000 Hz
Nominal Power Input........................60 watts
Maximum R.M.S. Input....................35 watts
Sensitivity .......................................4.4 Watts
Impedance ......................................4 ohms
Drive Units.......................................1 x low frequency passive radiator
.......................................4 x bass frequency drivers
.......................................2 x midrange drivers
.......................................2 x high frequency drivers
Crossover Frequencies....................80, 800, 4000Hz
Capacity .........................................75 watts RMS
Connection ......................................Lead with DIN plug and screw terminals supplied
Dimensions(w x d x h)......................35.5 x 31.5 x 77 cm
Weight ............................................20kg per speaker
