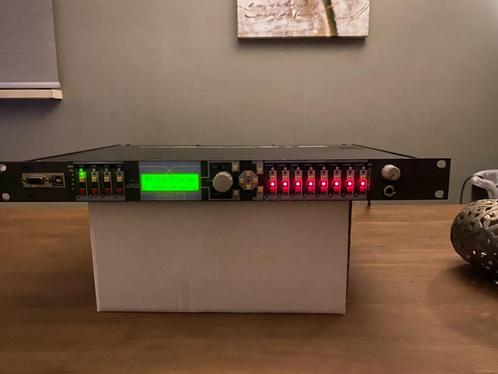

APEX speaker processor

Apex Intelli-X48 DSP Real-Time System-Optimizer

Werkt helemaal prima.

– 4 analogue input & 8 analogue output channels
– 24 bit A/D and D/A converter
– 2 AES/EBU input channels with sample rate converter
– 4 x 8 routing matrix
– Input Signal Processing: each input channel offers following features simultaneously with no need to allocate processing power:
– Delay up to 0,5 sec with 21 microsecond resolution
– 30-band graphic EQ
– 10-band parametric EQ
– 2 shelving EQs
– Digital Gain control
– Output Signal Processing: each output, again, offers following features simultaneously:
– Delay up to 0,5 sec with 21 microsecond resolution
– High- & Low- pass filters are provided for the frequency cross-over functions. The selection includes Butterworth and Bessel type filter with switch-able slopes between 6,12,18, 24, 30, 36, and 48dB/octave, Linkwitz-Riley filters at 12, 24, 36 and 48 dB/octave.
– 2 shelving EQs
– 8-band parametric EQ
– Limiter with adjustable threshold and slow, medium and fast presets for attack-release.
– Comprehensive controls and a graphic display ensure convenient editing and control over the most important parameters and presets from the front panel.
– 10 segment LED-VU meters on all inputs and outputs
– Nominal input & output levels are adjustable in four steps
– Illuminated mute buttons on all outputs
– Universal switch-mode PSU 90 – 260 V AC
– USB and serial RS232 port on the front panel for easy hook-up to laptop PCs
