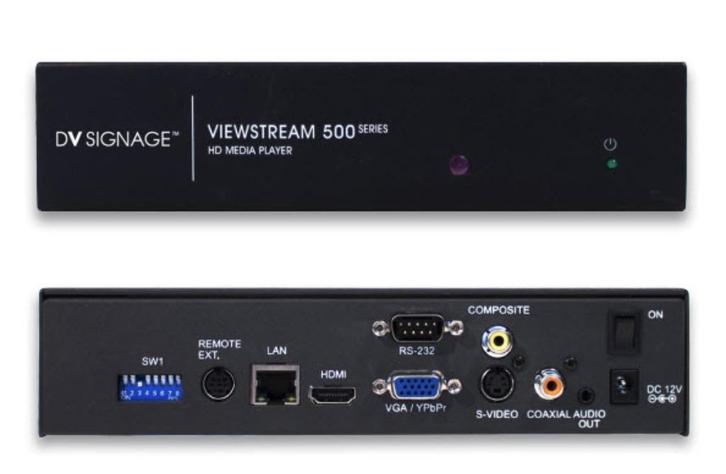

The ViewStream™ 500 (VS-500) provides brilliant quality video and flexibile
networked signage support together with a host of features including
system & enivironment monitoring options.
Features
IR Control : Stop / Play / Pause / Repeat /
Previous / Next / Volume / Mute
Play Mode : Simple play mode
Playlist mode
Schedule playback
USB Update : Entire / Partial update
Networking : Supports FTP Content Management Software
Note : Some features are software dependent.
Specification
Output Resolutions : 1920x1080i/60, 1920x1080p/60
1280x720p/60, 1600x1200p/60
1024x768p/60, 525i, 625i
Storage Media : Compact Flash Card
Video Output : HDMI / DVI* / VGA / YPbPr*
Composite / S-Video
Audio Output : Stereo phone jack / Digital Coaxial
Playback Functions : Play / Stop / Pause / Repeat Previous
track / Next track / Volume / Mute /
Loop playback / Sequence play /
Startup mode / Sleep mode
External I/O ports : RS-232 (9600, N-8-1)
USB (Data upload)
Infra-red (With DV IR handset)
Remote Ext. (For button & touch)
Network : RJ-45 LAN connector
LEDs : Power LED / Network LED
Real Time Clock : Battery-backup RTC
Power Requirement : DC 12V input
Power Consumption : 500mA @12V
Operating Temp : 0° C to 50° C
Relative Humidity : 5% - 95% relative humidity
(Non-condensing condition)
Content Format Supported
Codec Formats : MPEG-2 (PS, TS)
MPEG-4 (AVC / H.264)

For seemless HD playback .ts format is required.
Still Picture : JPEG, Bitmap, GIF
Audio : 44.1kHz Stereo, 224kbit/s
Playable Formats : .MPG / .MP2 / .MP4 / .M2V / .TP
.AVI / .MOV /.WMV
.JPG / .BMP /.GIF
Accessories
Optimized CF Card, DV IR handset, WiFi Router, Speakers, DVI adapter, HDMI
Cables, Component video cables, DV Studio software
> Robust Lightweight Aluminium Casing
> HD 1080p / Solid State - Compact Flash Storage
> Loop / Auto Playback Mode
> Content is Programmable using free DV Studio Software
