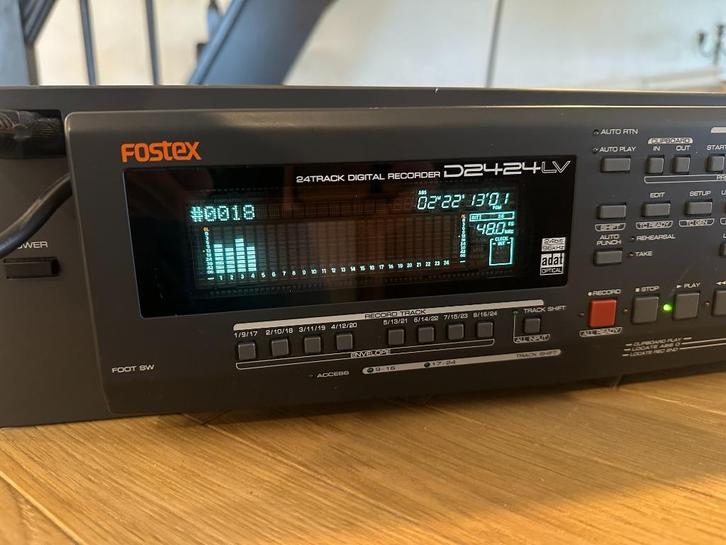

In goede staat. Inclusief 3 hard drives in caddies. Er kunnen er twee tegelijk in de Fostex.

Hard drives:
Western Digital WD1600
Western Digital WD400
Quantum Fireball EL7.6

RECORDER SECTION
Recording medium
3.5inch,E-IDE type hard disk* 80GB

Recording format
FDMS-3 version 3

Save/Load format
SCSI,FDIO-1 version 2

Sampling frequency
44.1kHz,48kHz,88.2kHz,96kHz (selectable)

Quantisation
16bit /24bit

Data Save/Load
E-IDE HD,DVD-RAM or SCSI

A/D &D/A converters
24bit Delta Sigma 128 times over sampling

No.of recording tracks
56 (24 plus 32 additional tracks)

Simultaneous Recording Tracks
24 (8 at 24bit/96kHz,24bit/88.2kHz)

Simultaneous Playback Tracks
24 (8 at 24bit/96kHz,24bit/88.2kHz)

No.of programs
99

No.of locate memories
99

Pitch control
+/- 6%%(0.1%step)

Crossfade
10msec,(5msec at 24bit/96kHz,24bit/88.2kHz)

R/P frequency response:
20Hz -20kHz +/-1dB (20Hz to 43kHz +/-2dB at fs:96kHz)

Dynamic range
>105dB (typical)

Channel Separation
>80dB (at 1kHz,0dB,24bit)

T.H.D.
10k .
Input level balanced:+4dBu,unbalanced:+10dBV

Analog Output (1-24)
TRS phone jack x 24 (balanced)
Impedance >600 .
Output level balanced:+4dBu,unbalanced:-10dBV

Data In/Out
Optical x 6

Format
IEC 60958 Part 3 (=S/P DIF),Alesis Proprietary
Multichannel Optical Digital Interface (ADAT)
(selectable by setup mode)

WORD Input
BNC connector.TTL level

WORD Output
BNC connector.TTL level

RS422
D-sub 9pin.Sony 9 pin protocol ES buss

RS422 THRU
D-sub 9pin.Direct output of RS-422

MIDI In /Out /Thru
DIN 5 pin x 3

Punch In/Out
Phone jack x 1 (for option model 8051)

SCSI Port
D-SUB 50pin (half pitch)

PHYSICAL
Dimensions(mm)
482 (w)x 148 (h)x 381 (d)mm

Weight
Approx.7.0kg (with controller)

Power requirements
120V AC,230V AC -(50W)
