touting radio studio 107

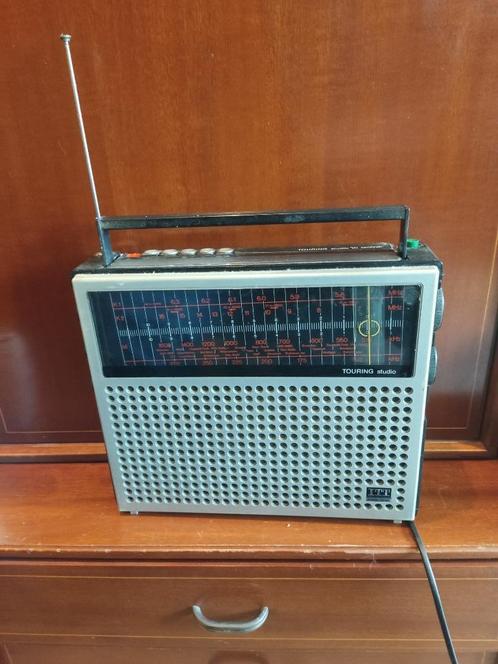

ITT Schaub Lorenz Touring Studio 107 Transistor Radio Vintage

periode 1975-1978

Collectors item maar kan ook als radio voor noodsituaties gebruikt worden (6 x 1,5 volt batterijen).

in goede staat. Speciale eigenschap: 7PS Power Sound, 7Watt piekuitgangsvermogen.

• Number of Transistors
• 8

• Semiconductors
• BF324 BF451 BF451 BF441 BF441 BF441 BC173 BC548 TBA570 TBA810 1N60 ZPD8,2 1N4001 B30C400

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s) 14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 127-220 / 6×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 7 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Touring Studio 107 521514-75 - ITT Schaub-Lorenz

• Dimensions (WHD)
• 310 x 265 x 80 mm / 12.2 x 10.4 x 3.1 inch

• Notes
• ICs: 2.

SW1: 5,8-6.3 MHz; SW2: 6,9-16,1 MHz.
Gehäusefarbe: braun; siehe auch 521514-79 in schwarz/silber.

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Source of data
• Handbuch VDRG 1977/1978 / Radiokatalog Band 2, Ernst Erb
