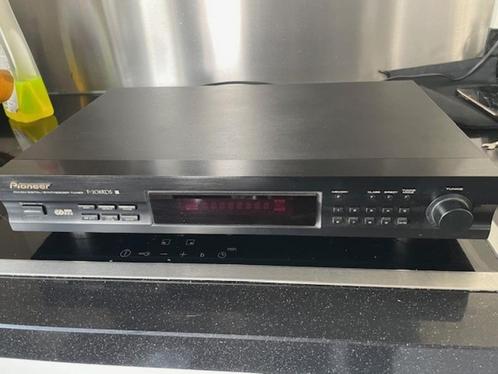

Pioneer F-208RDS Tuner

Pioneer F-208 Tuner
In goede werkende staat, is getest
Zwart

General

• Manufacturer: Pioneer
• Model: F-208 RDS
• Type: Tuner
• Years of manufacture: 1999 - 2012
• Color: Black
• Remote control:
• Mains voltage: Alternating current 220-230 Volts, 50/60 Hz
• Power consumption: 10 W
• Power consumption in standby mode: 1 W

Dimensions (WxHxD): 420 x 78 x 287 mm

• Weight (without packaging): 2.7 kg
• Original price approx.: 199 DM

Technical data
FM Tuner

• Waveband: 87.5 - 108 MHz.
• Useful sensitivity; NORMAL Mono: 14.2 dBf, IHF (1.4μV/75 Ω).
• 50 dB sensitivity threshold; Normal Mono: 22.2 dBf, IHF (3.5μV/75 Ω) Stereo: 38.6 dBf, IHF (23.3μV/75 Ω).
• Sensitivity (DIN); NORMAL Mono: 1.0μV/75 Ohm Stereo: 50μV/75 Ω
• Signal to Noise Ratio: Mono: 76dB (at 85 dBf) Stereo: 73 (at 85 dBf).
• Signal to noise ratio (Din) Mono: 64 dB Stereo: 60 dB
• Distortion (at 80 dBf) Mono: 0.4% (1kKz) Stereo: 1.0% (1kKz)
• Alternate channel separation: 70 dB (+_ 400 kHz)
• Stereo separation: 40 dB (1kKz)
• Frequency response: +_ 1dB (30 Hz to 15 kHz)

IF security: 90 dB

• Mirror selection: 80 dB
• Output (level/impedance): VHF (100% mod.): 1.9 V / 1 kOhm
• Antenna input: 75 Ω unbalanced

MW Tuner

• Frequency range: 531 kHz to 1,602 kHz (stepped 9 kHz).
• Sensitivity (IHF, loop antenna): 350 μV/m
• selectivity: 33 dB (+_ 9 kHz)
• Signal-to-noise ratio 51 dB
• Mirror selection: 35 dB
• IF security: 51 dB
• Output (level/impedance): MW/LW (30% mod.): 224 mV / 1 kohm
• Antenna: loop antenna

LW Tuner

• Frequency ranges: 153 kHz to 281 kHz (steps 1 kHz)
• Sensitivity (IHF, loop antenna): 1,000μV/m
• selectivity: 30 dB
• Signal-to-noise ratio: 51 dB
• Mirror selection: 30 dB
• IF security: 51 dB
• Antenna: loop antenna
