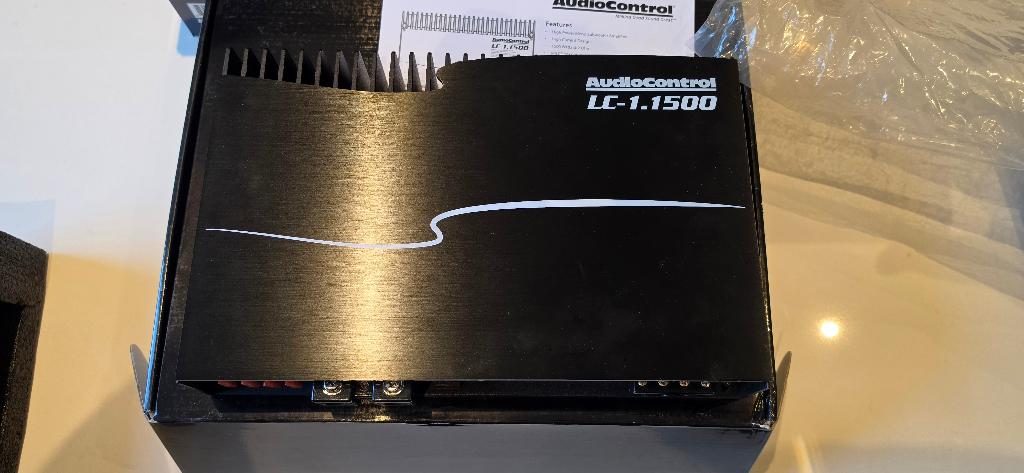

LC-1.1500 Mono Subwoofer Amplifier

When you demand the perfect blend of power and performance, AudioControl provides answers and the LC-1.1500 is no exception.

No matter the install, you can be assured power will meet and exceed expectations with 1500 watts at 2 ohms. The mix of high level and low level inputs mean you have the widest input voltage range in the industry. AudioControl’s patented AccuBASS® circuit is the only way to properly overcome factory bass roll-off and heavily equalized factory bass settings.
Enjoy loud, clean and articulate bass combined with the best warranty available with the LC-1.1500 amplifier.
Features

• Subwoofer amplifier with patented AccuBASS®
• 1500 watts @ 2 ohms
• 850 watts @ 4 ohms
• AccuBASS® Processing
• MILC™ Maximum Input Level Control (Patent Pending)
• GTO™ Signal Sense
• 24 dB/octave Linkwitz-Riley Alignment crossover
• Speaker level and preamp inputs
• Optional ACR-1 assignable remote control
• Solid One-Piece Aluminum Chassis

Specifications/Inputs

• Preamp Inputs: 2 balanced
• Input Voltage Range: 500 mV – 6 Vrms
• Speaker Level Inputs: 2
• Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs

• Rated Continuous (RMS) Power at 14.4V:
• 4 Ω – 850 W RMS
• 2 Ω – 1500 W RMS

Performance

• Frequency Response: 10 Hz – 30 kHz
• Signal to Noise: 102 dBa, Ref 850 W @ 4 Ohm
• Damping Factor: 670 at 10 V, 4 Ohm Output, 100 Hz
• THD+N: < 0.01%
• Minimum Power / Ground Wire Gauge: 0 AWG wire
• Fuse Rating: 4 x 40 A
• Crossover: 24 dB/octave Linkwitz-Riley, Adjustable From 30 Hz – 230 Hz
• PFM Subsonic Filter: 24 Hz

Weights & Dimensions

• Dimensions: 12″W x 7.95″D x 2.1″H
• Weight: 7.2 lbs (3.3 kg)

In The Box

• LC-1.1500
• Speaker connectors
• Fuses
• Manual
• Warranty
