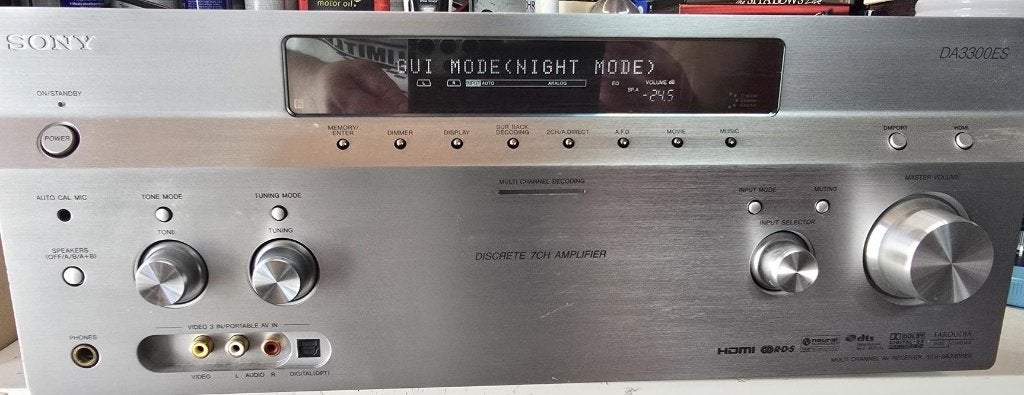

Sony DA3300ES
Discrete 7CH Amplifier Receiver.
Deze krachtige receiver levert een indrukwekkend geluid en is ideaal voor een thuisbioscoopopstelling of een geavanceerd audiosysteem.
Het apparaat is in uitstekende staat en werkt perfect.
Voorzien van diverse aansluitmogelijkheden,
waaronder HDMI, en ondersteuning voor meerdere luidsprekersystemen.
Een topkeuze voor de audioliefhebber.
Mist de afstandbediening

...........Word niet verstuurd weegt ongeveer 15 kilo......

specs.....

• Bi-AMP

YES

• Personal AUDIO Enhancer

YES

• Cinema Studio EX. A/B/C mode

YES

• Speaker Selector

A/B, A+B

• Sound Field Link (w Lock)

YES (YES)

• (8Ohms 20-20kHz) THD

0.09%

• Headphone Out

YES (Gold)

• Analog Down Mix

NO

• Digital Concert Hall

NO

• OP processing

NO

• Sound Field Program (Movie)

4, 6, 12, 1

• 4 Ohm/8 Ohm Switching

YES (In Menu)

• 8Ohms 20-20kHz

100 W

• Analog Direct

YES

• Sub Woofer X`Over

17 points (40-200Hz)

• DSP

SHARC x 1

• Number of amp. channels

7

• Type

Analog

• Equalizer(F/C/Sur/Sur B) Bass,Mid,Treble

B,T/B,T/B,T/B,T

• Pureness Control

NO

• Speaker Terminal

Screw (Ni)

I/Os

• Monitor Out (S-Video Out)

1 (0)

• Digital In/Out

Yes (3 IN x 1 Out)

• WM

Optional

• Blue Tooth

Optional

• DM-Port

1

• HDMI™

Yes (3 IN x 1 Out)

• i.Link

Yes (3 IN x 1 Out)

• Component Video In/Out (Pass through)

3/1 (HD)

• IX (Wi-Fi)

Optional

• Digital Input Assign

YES

• Multi-ch In

1 (7.1)

• iPod®

Optional

• Opt. IN/OUT/TV(CEC) : inc Front & TV(CEC)

5/1/YES

• Front Input

AV+Opt

• Audio In (Incl. TV CEC)/Out(excl. tuner)/TV(CEC)

4/1/YES

• Coax.

3/0

• A/V In/Out (S-Video I/O): Including Front AV

5/1 (0/0)

• USB

NO

• Phono (MM)

YES

• Pre Out

7.1 (SB:Stereo, SW x1)

HDMI™ Spec

• BRAVIA Theatre LINK (CEC Control)

YES

Decoding Format

• LPCM (2CH/5.1CH/7.1CH) thru HDMI™

YES/YES/YES

• DTS 96/24

YES

• Dolby Dual Mono

YES

• 96k/24Bit PCM

YES

• DTS NEO:6

YES

• Dolby Prologic IIx

YES

• Dolby Prologic II

YES

• Dolby Digital/DTS

YES/YES

• Dolby Prologic

YES

• Dolby Digital EX

YES

• DTS-ES (MATRIX6.1/DISCRETE6.1)

YES (YES/YES)

• Neural Audio

YES

• DTS HD/DolbyTruHD/Dolby Digital+

NO/NO/NO

Tuner

• Auto Tuning

YES

• Station Name

YES

• Preset Channel (FM/AM)

TTL 60 (30/30)

• RDS

YES

• Direct Tuning

YES (RM)

Video Features

• A/V SYNC (Variable/Fixed)

YES (Variable)

• HDMI™ Repeater

YES

• Video Down Converter (Analog)

YES

• Video Up Converter (S/Component/HDMI™)

-/Component/HDMI™

• Sampling Frequency (UpTo 192kHz/96kHz/48kHz)

96

• HDMI™ Quality 1080/24p

YES

• Upscaling (Component/HDMI™)

YES/YES

• HDMI™ Quality x.v.Color (xvYCC)

NO

• Time(msec)

300

• HDMI™ Quality 1080p

YES

• Assignable HDMI™ Video IN

YES

• Assinable Component Video IN

YES

DCAC (Digital Cinema Auto Calibration)

• DCAC (DSP/UCOM)

DSP

• Mic (STEREO/MONO)

MONO

• Band

6 Band

CIS & Control features

• S-Link/Control S (M-bus)

NO/NO

• Amp Relocation (7.1ch -> 5.1ch + 2.0ch)

NO

• IR Repeat (In/Out)

NO

• 2nd V

NO

• 2nd/3rd Zone ON/OFF Switch

NO

• Mega CD Control

YES (on RM)

• 2nd A

NO

• Control A1 II

NO

• Multi-Room (Pin Jack out w Vol)

NO

• 12V Trigger

NO

• 3rd V

NO

• EXT Video IN (PinP)

NO

• DSS Control

YES (on RM)

• RS-232C for control

NO

• 3rd A

NO

General

• Panel

Alumi/ES Basic

• Weight (Kg)

14.5

• AC Outlet (Switched)

NO

• Detachable AC

YES (w/Lock)

• Sleep Timer

YES

• Remote Commander

New, PP, RM-AAP019, RM-AAU018

• Multi Channel Decoding Blue LED

YES

• GUI/OSD

GUI (Blending)

• Dimension (WxHxD) (mm)

430 x 171.5 x 424.8

• Pin Jack

Nickel

• Display

Single DOT
