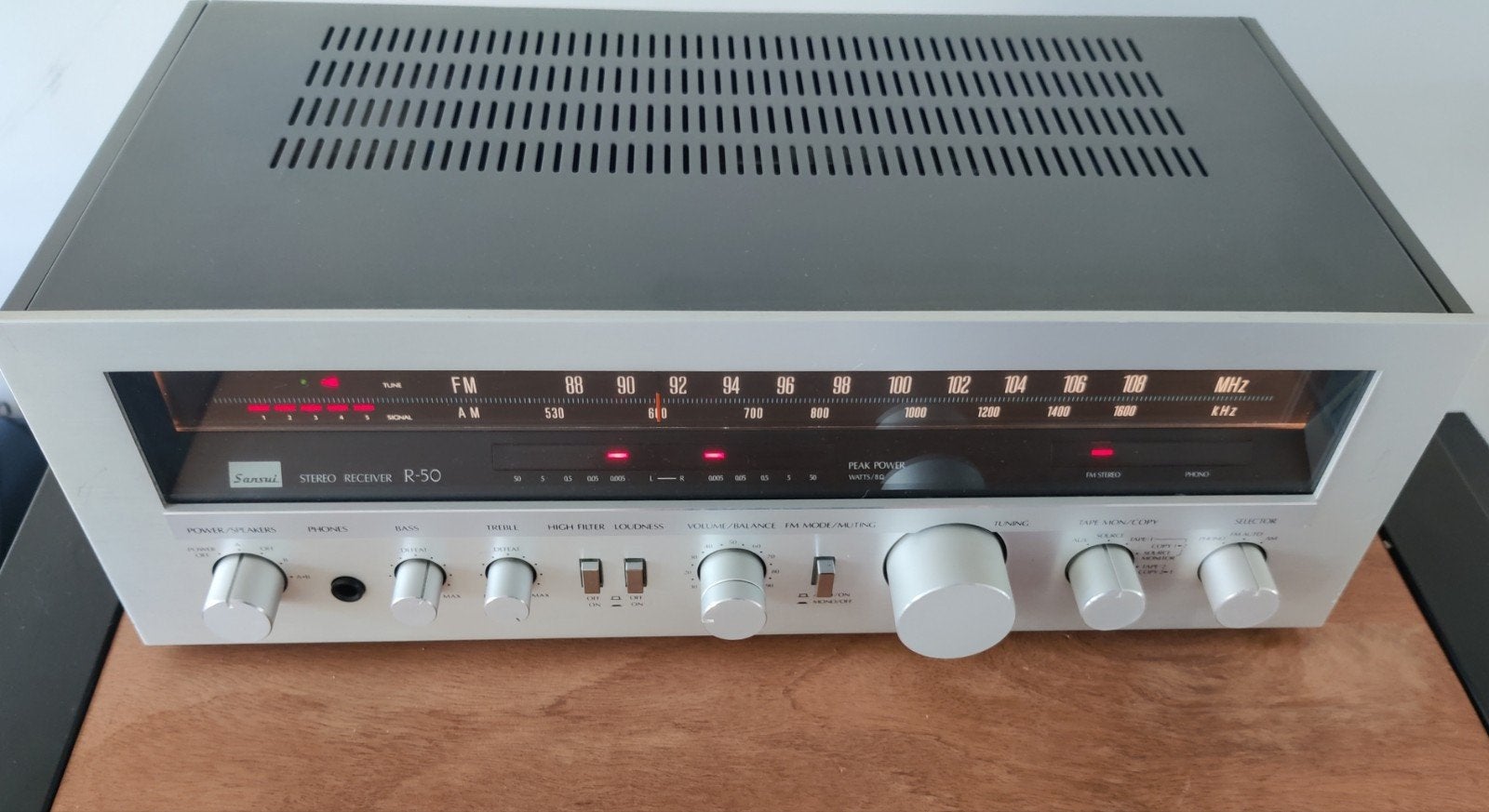

Prachtige vintage Sansui R-50 Stereo Receiver. Dit klassieke audiostuk verkeert in goede, werkende staat en levert een warm en helder Sansui (met loudness) geluid. Ideaal voor de liefhebber van retro audioapparatuur of als aanvulling op een bestaande setup. De receiver heeft diverse aansluitmogelijkheden, waaronder Phono, AUX en Tape.

Years of manufacture: 1980 - 1982
Made in: JapanColor: Silver
Power consumption max.: 190 WDimensions (WxHxD): 430 x 147 x 212 mm
Weight: 6.7 kgOriginal
price approx.: 900 DM

Connections
Number of inputs

Phono MM: 2.5 mV / 47 kOhm, 100 mV max.

Aux: 150 mV / 47 kOhm

Tape Play 1, 2: 150 mV / 47 kOhm

Antenna (FM: 75, 300 Ohm, MW: 300 Ohm).

Number of outputs:

Tape Rec 1, 2: 150 mV

Headphones: 4 - 16 Ohm

2 pairs of loudspeakers

8 Ohm: 2x 45 W (RMS, 20 - 20'000 Hz), 2x 65 W (1 kHz)

4 Ohm

Total harmonic distortion: < 0.009 %Attenuation factor: 50 (8 Ohm)Frequency response:

Phono, RIAA: 20 - 20'000 Hz, ± 0,3 dB

High level: 10 - 50'000 Hz, + 1 dB, - 3 dB

Signal-to-noise ratio:

Phono MM: 73 dB

High level: 90 dB

Tone control:
Bass: ± 10 dB at 100 Hz
Treble: ± 10 dB at 10 kHz
Loudness: + 6 dB at 100 Hz, + 3 dB at 10 kHzHigh Filter: - 6 dB / octave at 10 kHzLow Filter (Subsonic):Mute:
Tuner
Reception: FM, MWFrequencies:
FM: 88 - 108 MHz
MW: 525 - 1605 kHz

Input sensitivity:
FM: 2.2µV
MW: 300µV
All other specifications for VHFFrequency response: 30 - 15'000 Hz, + 2 dB, - 3 dB
Distortion factor:
Mono: < 0.5
Stereo: < 0.8
Signal-to-noise ratio:
Mono: 72 dB
Stereo: 65 dB
Channel separation: 35 dB (1 kHz)selectivity: 55 dBCo-wave selection: 1.0 dBSpurious wave selection: 65 dBImage frequency attenuation: 80 dBIF attenuation: 90 dBAM suppression: 55 dBStation memory:
Special Features
LED peak display
