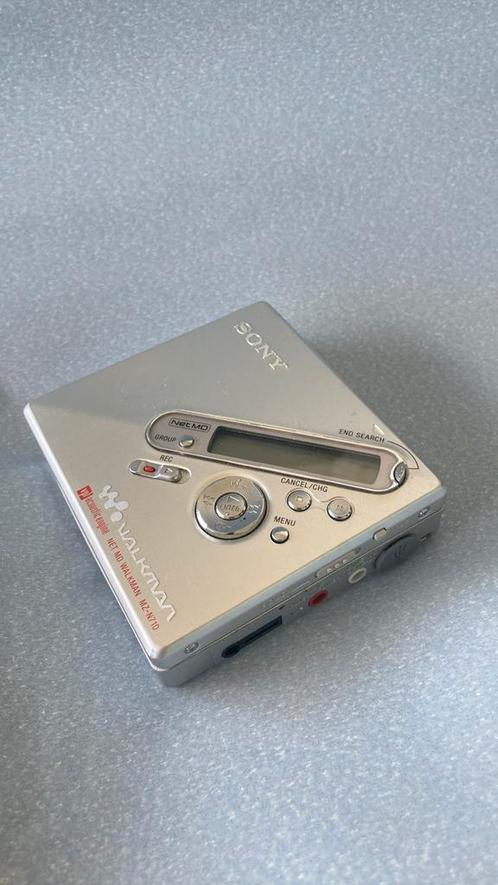

Sony MZ-N710 + 20 MD’s

The Sony MZ-N710 is a portable MiniDisc (MD) Walkman released by Sony in the early 2000s. It is part of the NetMD series, which introduced PC connectivity and faster music transfers via USB.

⸻

1. General Specifications
• Model: Sony MZ-N710
• Type: NetMD MiniDisc Walkman
• Release Year: 2003
• Format: MiniDisc (MD)
• Recording/Playback: Yes (Recording & Playback capable)

⸻

2. Audio Features
• Audio Compression: ATRAC3 / ATRAC3plus
• Playback Formats: SP (Standard Play), LP2, LP4
• Recording Modes: SP, LP2, LP4 via SonicStage software
• Bitrate Options:
• SP: 292 kbps
• LP2: 132 kbps
• LP4: 66 kbps
• Sound Enhancement: Digital Mega Bass, Virtual Surround Sound
• Manual Recording: Via line-in (optical/analog combo)

⸻

3. PC Connectivity
• Interface: USB 1.1 (for music transfer only)
• Software Required: SonicStage (originally bundled)
• Transfer Type: NetMD (faster-than-real-time music uploads from PC to MD)

⸻

4. Power and Battery
• Primary Power: AA battery (via external battery case)
• Optional Power: Rechargeable Gumstick NiMH battery (NH-14WM)
• Battery Life (Approximate):
• Playback: ~56 hours (with AA + gumstick)
• Recording: ~20–30 hours
• Charging: External charger or charging stand (not always included)

⸻

5. Design and Build
• Dimensions: 81.6 × 28.3 × 74.6 mm (W × H × D)
• Weight: Approx. 106g (without battery)
• Construction: Durable plastic and metal casing
• Colors: Available in various colors (silver, blue, etc.)

⸻

6. Inputs and Outputs
• Line-In: 3.5mm analog/optical combo jack
• Headphone Jack: 3.5mm stereo output
• Mic-In: Yes (3.5mm, powered)
• USB Port: Yes (for PC connection only)

⸻

7. Included Accessories (varied by region)
• SonicStage software CD
• USB cable
• Remote control (with display, optional)
• Earphones
• External battery case (for AA battery)
• Carry pouch (sometimes)

⸻

8. Special Features
• Group Function: Allows organization of tracks into groups
• Title Naming: Via PC or on-device (using the remote)
• Editing Functions: Combine, Divide, Move, Erase tracks
• Display: LCD (on unit and/or remote)
• Key Lock Function: Prevents accidental button presses

⸻

9. Strengths
• Excellent sound quality
• Long battery life
• Lightweight and portable
• Fast PC-to-MD music transfer via NetMD
• Rugged design with good tactile controls

⸻

10. Limitations
• No reverse transfer (MD to PC)
• USB transfer limited to music files (no data or recordings)
• Requires outdated SonicStage software (compatibility issues with modern OS)
• Relies on MiniDiscs, which are now rare and expensive


Part of the NetMD Revolution
The MZ-N710 was among the early devices that introduced USB-based NetMD, allowing music to be transferred to MiniDiscs at speeds up to 64x faster than real-time — a major leap from earlier MD units.
Not a True Hi-MD, but Still Loved
While not compatible with the later Hi-MD format, the MZ-N710 became popular for its stability, simplicity, and excellent audio quality, even years after MiniDiscs faded from the mainstream.
Popular with Field Recorders
Despite NetMD’s limitations (no upload to PC), the unit gained a following among musicians and journalists thanks to its optical/analog line-in and mic input, making it great for live recordings.
Still Functional Today
Many MZ-N710 units are still in working condition over 20 years later, a testament to Sony’s engineering. They remain popular with retro audio enthusiasts and collectors.
Hacked for More Features
Enthusiasts have discovered workarounds and modifications to use third-party software like Web MiniDisc (with certain USB-to-serial adapters), extending the usefulness of the device even on modern systems.

Excellent Sound Quality
• Uses ATRAC3 compression, known for preserving clarity even at lower bitrates (LP2 sounds nearly as good as CD-quality to most ears).
• Enhanced by Digital Mega Bass and surround modes.
Durable and Portable
• Sturdy metal/plastic build withstands daily use.
• Compact enough to fit easily in a pocket or bag.
Flexible Recording Options
• Supports mic input, optical/analog line-in, and real-time recording.
• Great for live music, interviews, and fieldwork.
Exceptional Battery Life
• Can run for over 50 hours on a single AA battery + gumstick combo.
• Very efficient for long trips without recharging.
Group & Title Functions
• Organize tracks into groups (like folders) for better playlist control.
• Easy on-device or PC-based naming of tracks and discs.
Fast Music Transfers from PC
• USB 1.1 NetMD support allows up to 64x speed transfers (using SonicStage software).
• Much faster than older MD real-time recording.
Still Supported by Enthusiasts
• Active MiniDisc communities still provide support, accessories, blank MDs, and repair tips.
• Plenty of online tutorials for new users or tinkerers.
