Tascam MD-801R Pro MiniDisc Recorder

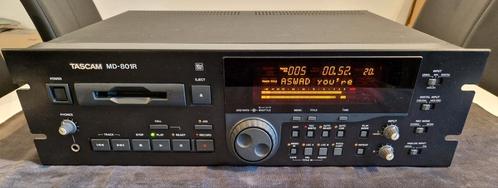

MD-801R Recorder (foto's 1 t/m 5) in goede staat,
incl. user manual.

Ook goede MD-801R MKII ter overname voor 595,- Euro,zie mijn andere MP ad.
En ook ter overname,goede Tascam MD-801P Player (foto's 6 t/m 8) : 375,- Euro.

Optie voor een MD-801R MKII (deze optie is apart aangeboden in andere MP ad.):
New Full function remote control
RC-801N+BU801: 395,- Euro.
- All functions of the MD-801R MKII can be controlled from the RC-801N
- 10 numeric key format
- When BU-801 is installed numeric keys can be used as "Flash Start"
Compleet met User manual's en D-Sub 5m.kabel. en originele verpakkingen.
BU-801 ram card, flash start Ram card.

Opties bij overname MD-801R/P:
- RC-8 basic function remote control + D-Sub cable (foto 9): 95,- Euro
- RC-801 + BU-801 + IF-8FR + D-Sub cable (foto 10): 395,- Euro.
RC-801 full function remote control for the MD-801R/P,all functions of the MD-801R/P can be controlled from the RC-801.
10 numeric key format, when BU-801 is installed,numeric keys can be used as "flash start"
BU-801 ram card, flash start ram
card.
IF-8FR interface for RC-801.

Rack mount 19inch 3He
- Jog dial and shuttle wheel for manual frame by frame
searching and positioning
- Wide pitch control ± 9.9% (in 0.1% steps)
for sampling and dance studios
- Programmable End-of-Message function gives up to 99 sec.
warning of track ending
- Fastest access : 200 ms full stroke search time is 5 times
faster than any other MD Player.
- BU-801 RAM buffer for Instant start replay:
Optional buffer memory which stores the first frames of
up to 20 tracks to provide instant start.
- Fast editing : on disc reversible cut, insert, move and erase
works just like traditional "razor-blade" editing
- Auto locate fe ature finds specific points on tape quickly and
accurately
- RS-232C serial data port for interface to external computers
or others.

- Frequency Response: 20Hz-20kHz, ±0.5dB
- Signal to Noise Ratio:>101dB (1kHz, A-Weighted)
- Dynamic Range:>94dB (1kHz, A-Weighted)
- Total Harmonic Distortion:<0.006%
- Sampling Frequency:44.1kHz
- A/D & D/A Resolution:20 Bit.

For interfacing the MD-801R includes both XLR balanced and RCA
unbalanced analog inputs and outputs.
Digital l/O support is provided in both AES/EBU and
S/PDIF configurations.

- Analog Input balanced: XLR
- Analog Output balanced: XLR
- Analog Input unbalanced: RCA
- Analog Output unbalanced: RCA
- Digital Input and Output: AES/EBU XLR, AES3-1992
SPDIF Coaxial, IEC60958
- Headphone Output: 1/4" stereo jack.

Remote Connectors:
- D-sub 9-pin, RS-232C Serial Port
- 6 pin Mini DIN; for IBM PS/2 compatible external keyboard
- D-sub 37-pin, TTL level, for Parallel Control & Tallies.

General Specifications:
Power Requirements: 230 Volt
Power Consumption: 33 Watt
Dimensions: W482 x H132 x D353 mm
Weight: 8 kg.
