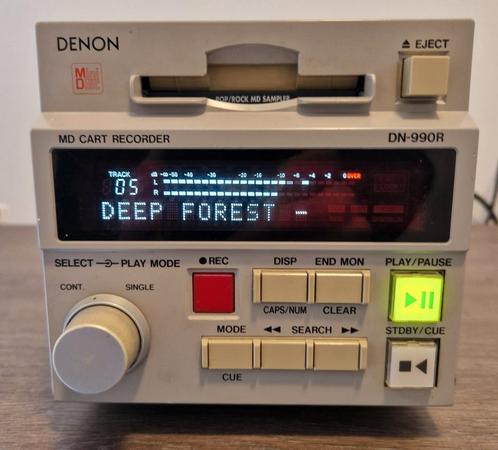

Denon DN-990R Pro MiniDisc Recorder

DN-990R in goede staat;
incl. AC aansluitkabel en user manual;

(Ook DN-980F player in goede staat ter overname voor 275,- Euro.)

- Instant-Start (Playback starts less than 0.01 sec.
after the PLAY button is pressed.)

- Defeat SCMS (Serial Copy Management System)
Recording is possible without reception of the copy
defeat restriction. Writing of the copy defeat code is
On/ Off selectable.

- Chassis width of only 144 mm allows the mounting of
3 players in a 19” rack unit. This reduced width also
means a smaller footprint when used on the table top.

- 13-character information display
- 24-segment peak-level meter with overload indication
- 3-digit track number display
- Track Search Select knob (Easy track selection)
- Play mode:
- Continuous: Play a whole disc
- Single: Play a track
- Repeat: Repeat the playback

- Finish mode:
(only when l Track play is selected )
- Stop: Stop after finishing to play a track
- Next: Standby at the beginning of next track after
finishing to play a track
- Recue: After finishing to play a track, standby at
the beginning of the track
- Auto Cue
The pickup is cued to the position within
the track where the sound starts and enters
standby mode. The sound detection level
can be set within a range of -36 to -72 dB.
- Back Cue
When the standby (STDBY/CUE) button is
pressed during playback, the standby mode
is set with the pickup at the position where
playback was last started.
- End Monitor
Pressing the END MON button during standby instantly
previews the end of the track, thus assuring perfect
“outros”. The point at which monitoring starts can be set
within a range of 5 to 35 seconds (7 steps) prior to the
track’s end.
- End Of Message (EOM)
At the end of a track ,the PLAY/ PAUSE button flashes,
providing a visual warning to the operator that the
track will end shortly. The point at which the flashing
begins can be set within a range of 5 to 35 sec.
(7 steps) prior to the end of the track.
- Selectable Pitch (Standard or +2%)

Specifications:
Type MD Cart Recorder
Audio Channels 2 channels
Playback: Stereo / Mono selectable
Recording: Stereo
Playback System Optical pick-up system
Recording System Magneto-optical overwriting system
Signal Compression System ATRAC
(Adaptive TRanstorm Acoustic Coding)
Rotating Speed Approx. 400 - 900 rpm
Recording / Playback Time 74 min. (Stereo),
148 min. (Mono playback)
Quantization Bits A/D converter: 16-bit
Sampling Frequency 44.1 kHz
Total Harmonic Distortion 0.012 % or less (Playback, A filter)
0.02 % or less (Recording, A filter)
S /N ration 92 dB or higher (P layback, A filter)
84 dB or higher (Recording , A filter)
Channel Separation 86 dB or higher (Playback, A filter)
80 dB or higher (Recording, A filter)
Frequency Response 20 ~ 20,000 Hz (+0.5, –1 dB)

Analog outputs:
Transfer and connector Balanced (active), XLR connector
Output level +18 dBm, 600 ohm
Output level adj. range +22 dBm to –20 dBm
Headphone 20 mW (30 to 40 ohm)

Digital Output:
Transfer and connector XLR connector
Signal format AES/EBU
Output level 3 Vp-p, 110 ohm

Analog Inputs:
Transfer and connector Balanced (active), XLR connector
Input level Balanced: + 18 dBm, 10 kohm
Input level adj. range +22 dBm to –6 dBm (Balanced)

Digital Input:
Transfer and connector XLR connector
Signal format: AES / EBU
Input level 3 to 10 Vp-p, 110 ohms

Serial remote RS-232C, D-Sub 9-pin
Parallel Remote D-Sub 25-pin
Power Supply AC 220V
Power Consumption 32W
Dimensions 144 (W) x 133 (H) x 401 (D) mm
(without feet)
144 (W) x 146 (H) x 401 (D) mm
(with feet)
Weight: 5.8 kg.
